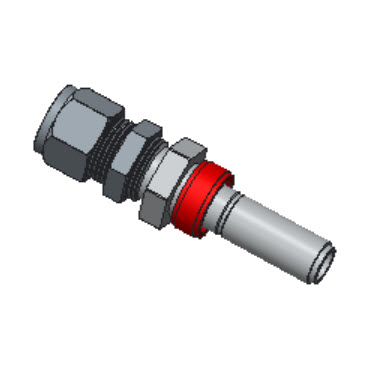

Q Series Hy-Lok Bulkhead Tube Stem Connector Fittings

SKU N/A Category

Description

Product Tube Outside Diameter (in) Tube Outside Diameter (mm) Length (L) (in) Length (L) (mm) Width Across Flat (H) (in) Width Across Flat (H) (mm) Working Pressure (psig) Working Pressure (bar) Temperature Rating with FKM O-Ring (ºC) Temperature Rating with FKM O-Ring (ºF) PDF
Q1SSBH-4T 1/4 2.740 69.60 5/8 15.80 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q2SSBH-6T 3/8 2.920 74.20 3/4 19.10 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q3SSBH-8T 1/2 3.430 87.10 15/16 23.80 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q1SSBH-6M 6.00 2.740 69.60 16.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q2SSBH-10M 10.00 3.060 77.70 22.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q3SSBH-12M 12.00 3.430 87.10 24.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q1DSBH-4T 1/4 2.800 71.10 5/8 15.80 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q2DSBH-6T 3/8 3.270 78.00 3/4 19.10 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q3DSBH-8T 1/2 3.630 92.20 15/16 23.80 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q1DSBH-6M 6.00 2.800 71.10 16.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q2DSBH-10M 10.00 3.100 78.70 22.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q3DSBH-12M 12.00 3.630 92.20 24.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
