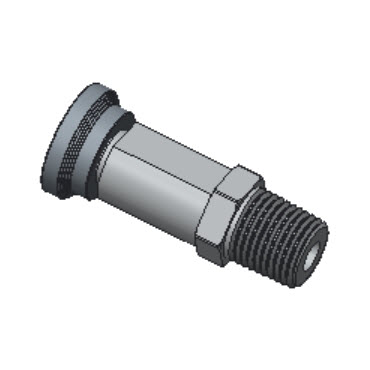

Q Series Male Pipe Thread Body Connector Fittings

Category Q Series Quick Connectors

Description

Product	Length (L) (in)	Length (L) (mm)	Diameter (D) (in)	Diameter (D) (mm)	Width Across Flat (H) (in)	Width Across Flat (H) (mm)	Working Pressure (psig)	Working Pressure (bar)	Temperature Rating with FKM O-Ring (ºC)	Temperature Rating with FKM O-Ring (ºF)	PDF
Q1BM-2N	2.010	51.10	0.910	23.10	5/8	15.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q1BM-4N	2.160	54.90	0.910	23.10	5/8	15.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q2BM-4N	2.380	60.50	1.030	26.20	3/4	19.10	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q2BM-6N	2.380	60.50	1.030	26.20	3/4	19.10	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q3BM-8N	2.970	75.40	1.210	30.70	15/16	23.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q1BM-4R	2.160	54.90	0.910	23.10	5/8	15.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q2BM-6R	2.380	60.50	1.030	26.20	3/4	19.10	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
Q3BM-8R	2.970	75.40	1.210	30.70	15/16	23.80	Up to 3000	Up to 206	-23 ~ 204	-10 ~ 400	PDF
