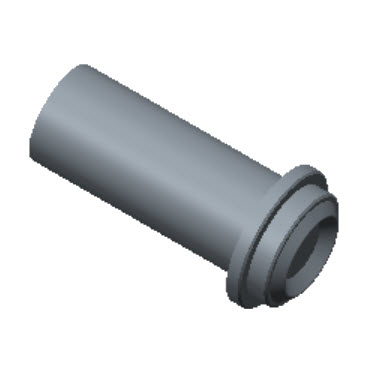

Blind Gland


  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
SKU N/A Category


Product Dimension L (in) Dimension L (mm) ZCR Size (in) PDF
H-ZBG-2 0.700 17.80 1/8 PDF
H-ZBG-4 1.310 33.30 1/4 PDF
H-ZBG-8 1.500 38.10 1/2 PDF
H-ZBG-12 2.000 50.80 3/4 PDF
H-ZBG-16 2.220 56.40 1 PDF
