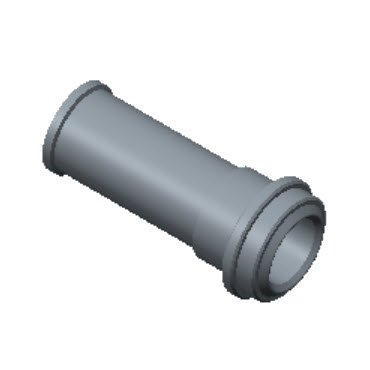

Short Tube Butt Weld Gland with Shoulder

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
SKU N/A Category

Description

Product Dimension C (in) Dimension C (mm) Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Wall Thickness (in) Wall Thickness (mm) ZCR Size (in) PDF
H-ZSG-4A 0.75 19.05 0.180 4.55 1.120 28.40 1/4 0.035 1/4 PDF
H-ZSG-6A 0.75 19.05 0.300 7.67 1.150 29.20 3/8 0.049 1/2 PDF
H-ZSG-8A 0.75 19.05 0.400 10.14 1.160 29.50 1/2 0.049 1/2 PDF
H-ZSG-6MA 0.75 19.05 0.160 4.06 1.180 30.00 6 1.0 1/4 PDF
H-ZSG-8MA 0.75 19.05 0.240 6.12 1.190 30.20 8 1.0 1/4 PDF
H-ZSG-10MA 0.75 19.05 0.320 8.12 1.220 31.00 10 1.0 1/2 PDF
H-ZSG-12MA 0.75 19.05 0.390 9.96 1.200 30.50 12 1.0 1/2 PDF
