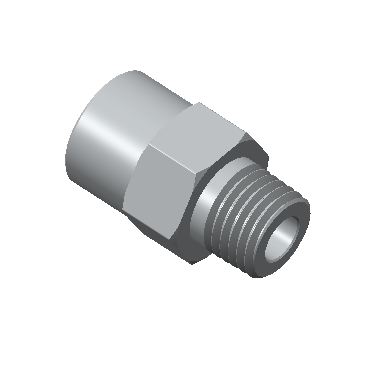

Male Connector (H-SSD)

SKU N/A Category

Description

Product Dimension D (mm) Dimension d (mm) Dimension E (mm) Dimension H (mm) Dimension L (mm) Dimension P (in) Tube O.D. (in) PDF
H-SSD4T-4N-S316 12.20 4.60 7.10 14.20 29.20 1/4 1/4 PDF
H-SSD6T-4N-S316 15.30 7.10 7.90 15.80 31.80 1/4 3/8 PDF
H-SSD6T-6N-S316 15.30 7.10 7.90 17.40 31.80 3/8 3/8 PDF
H-SSD6T-8N-S316 15.30 7.10 7.90 22.20 37.30 1/2 3/8 PDF
H-SSD8T-4N-S316 18.50 7.10 9.70 19.05 33.30 1/4 1/2 PDF
H-SSD8T-6N-S316 18.50 9.40 9.70 19.05 33.30 3/8 1/2 PDF
H-SSD8T-8N-S316 18.50 10.20 9.70 22.20 38.90 1/2 1/2 PDF
