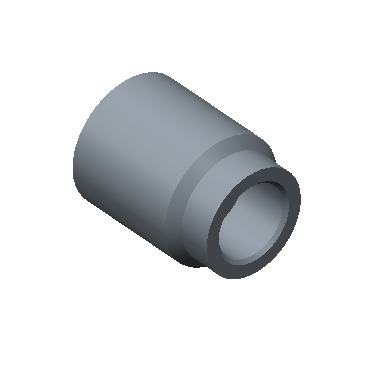

Tube Weld to Tube Socket Weld (H-SWRM)

SKU N/A Category

Description

Product Dimension D (mm) Dimension d (mm) Dimension E (mm) Dimension L (mm) Tube O.D. (in) Tube O.D. (T₁) (in) PDF
H-SWRM-4T-2T-S316 7.40 2.30 2.50 14.20 1/4 1/8 PDF
H-SWRM-6T-4T-S316 12.20 4.60 7.10 19.10 3/8 1/4 PDF
H-SWRM-8T-4T-S316 18.20 4.60 7.10 22.40 1/2 1/4 PDF
H-SWRM-8T-6T-S316 15.70 8.10 7.90 22.40 1/2 3/8 PDF
H-SWRM12T-8T-S316 18.50 10.20 9.70 28.40 3/4 1/2 PDF
H-SWRM16T-8T-S316 18.50 10.20 9.70 35.10 1 1/2 PDF
