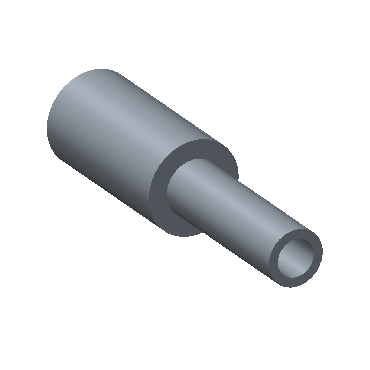

Reducing Union without Shoulder

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.
SKU N/A Category

Description

Product Dimension C (in) Dimension C (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Tube O.D. (T1) (in) Tube O.D. (T1) (mm) Wall Thickness (in) Wall Thickness (mm) Wall Thickness (T1) (in) Wall Thickness (T1) (mm) PDF
H-MU6-4 0.75 19.05 1.500 38.10 3/8 1/4 0.035 0.035 PDF
H-MU8-4 0.75 19.05 1.500 38.10 1/2 1/4 0.049 0.035 PDF
H-MU8-6 0.75 19.05 1.500 38.10 1/2 3/8 0.049 0.035 PDF
H-MU12-8 0.75 19.05 1.500 38.10 3/4 1/2 0.049 0.049 PDF
M-MU16-8 0.75 19.05 1.500 38.10 1 1/2 0.065 0.049 PDF
H-MU16-12 0.75 19.05 1.500 38.10 1 3/4 0.065 0.049 PDF
H-MU10M-6M 0.75 19.05 1.500 38.10 10 6.00 1.0 1.00 PDF
H-MU10M-8M 0.75 19.05 1.500 38.10 10 8.00 1.0 1.00 PDF
H-MU12M-6M 0.75 19.05 1.500 38.10 12 6.00 1.0 1.00 PDF
H-MU12M-8M 0.75 19.05 1.500 38.10 12 8.00 1.0 1.00 PDF
H-MU12M-10M 0.75 19.05 1.500 38.10 12 10.00 1.0 1.00 PDF
H-MU18M-6M 0.75 19.05 1.500 38.10 18 6.00 1.5 1.50 PDF
H-MU18M-12M 0.75 19.05 1.500 38.10 18 12.00 1.5 1.50 PDF
