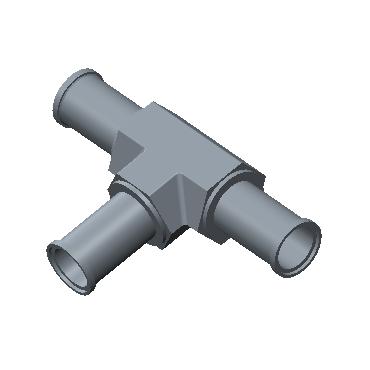

Long Reducing Tee with Shoulder

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.
SKU N/A Category

Description

Product Body Flat (F) (in) Dimension C (in) Dimension C (mm) Dimension L (in) Dimension L (mm) Dimension L1 (in) Dimension L1 (mm) Tube O.D. (in) Tube O.D. (mm) Tube O.D. (T1) (in) Tube O.D. (T1) (mm) Wall Thickness (in) Wall Thickness (mm) Wall Thickness (T1) (in) Wall Thickness (T1) (mm) PDF
H-MT6-4A 7/16 0.75 19.05 1.200 30.50 1.230 31.20 3/8 1/4 0.035 0.035 PDF
H-MT8-4A 11/16 0.75 19.05 1.340 34.00 1.360 34.50 1/2 1/4 0.049 0.035 PDF
H-MT8-6A 11/16 0.75 19.05 1.340 34.00 1.340 34.00 1/2 3/8 0.049 0.035 PDF
H-MT12-6A 15/16 0.75 19.05 1.460 37.10 1.460 37.10 3/4 3/8 0.049 0.035 PDF
H-MT12-8A 15/16 0.75 19.05 1.460 37.10 1.460 37.10 3/4 1/2 0.049 0.049 PDF
H-MT12M-6MA 11/16 0.75 19.05 1.340 34.00 1.340 34.00 12 6.00 1.0 1.00 PDF
