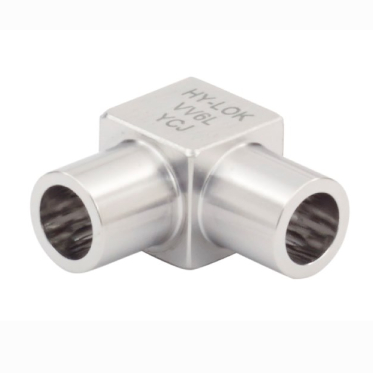

Mini Reducing Elbow

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.
SKU N/A Category

Description

Product Body Cube (F) (in) Dimension C (in) Dimension C (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Tube O.D. (T1) (in) Tube O.D. (T1) (mm) Wall Thickness (in) Wall Thickness (mm) Wall Thickness (T1) (in) Wall Thickness (T1) (mm) PDF
H-MLA6-4 7/16 0.25 6.35 0.470 11.90 3/8 1/4 0.035 0.035 PDF
H-MLA8-4 9/16 0.25 6.35 0.530 13.50 1/2 1/4 0.049 0.035 PDF
H-MLA8-6 9/16 0.25 6.35 0.530 13.50 1/2 3/8 0.049 0.035 PDF
H-MLA8M-6M 7/16 0.25 6.35 0.470 11.90 8 6.00 1.0 1.00 PDF
H-MLA10M-6M 7/16 0.25 6.35 0.470 11.90 10 6.00 1.0 1.00 PDF
H-MLA12M-6M 9/16 0.25 6.35 0.530 13.50 12 6.00 1.0 1.00 PDF
H-MLA12M-8M 9/16 0.25 6.35 0.530 13.50 12 8.00 1.0 1.00 PDF
