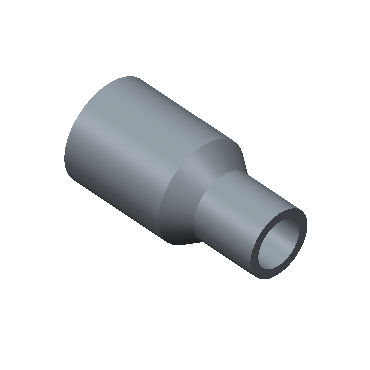

Mini Reducing Coupling

  • 316, 316L, 316L VOD and 316L VIM Stainless steel material
  • Weld fitting for manual or Automatic welding equipment.
SKU N/A Category

Description

Product Dimension C (in) Dimension C (mm) Dimension C1 (in) Dimension C1 (mm) Dimension L (in) Dimension L (mm) Tube O.D. (mm) Tube O.D. (T1) (in) Wall Thickness (in) Wall Thickness (mm) Wall Thickness (T1) (in) PDF
H-MCA6-4 0.41 10.41 0.250 6.35 0.750 19.05 1/4 0.035 0.035 PDF
H-MCA8-4 0.41 10.41 0.250 6.35 0.750 19.05 1/4 0.049 0.035 PDF
H-MCA8-6 0.41 10.41 0.250 6.35 0.750 19.05 3/8 0.049 0.035 PDF
H-MCA8M-6M 0.41 10.41 0.250 6.35 0.750 19.05 8 6mm 1 0.035 PDF
H-MCA10M-8M 0.41 10.41 0.250 6.35 0.750 19.05 8 8mm 1 0.035 PDF
H-MCA12M-8M 0.41 10.41 0.250 6.35 0.750 19.05 10 8mm 1 0.035 PDF
H-MCA12M-10M 0.41 10.41 0.250 6.35 0.750 19.05 10 10mm 1 0.035 PDF
