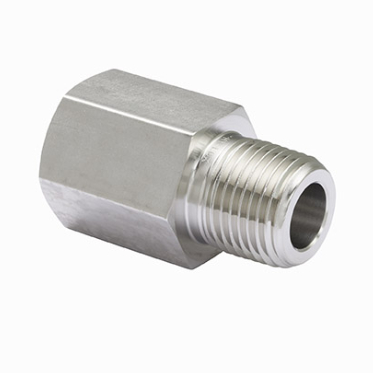

Reducing Adapter

Reducing Adapter

Precision pipe fittings for instrumentation and process control
Fine threads constructed to ensure leak-free & reliable systems
Male threads are protected with plastic cap
Various materials including SS316, Brass and Carbon steel
Many choice of connections and configurations are available
Female NPT to reduced size male NPT

SKU N/A Categories Fittings, Pipe Fittings

Option

Clear

Description

Related Products

Product	Dimension A (mm)	Dimension E (mm)	Dimension H (Hex) (mm)	Female Pipe Size (in)	Male Pipe Size (in)	PDF
H-MFAC2-4N-BRAS			19.05	1/4	18	PDF
H-MFAC2-6N-BRAS			22.20	3/8	1/8	PDF
H-MFAC4-6N-BRAS			22.20	3/8	1/4	PDF
H-MFAC2-8N-BRAS			26.90	1/2	1/8	PDF
H-MFAC4-8N-BRAS			26.90	1/2	1/4	PDF
H-MFAC6-8N-BRAS			26.90	1/2	3/8	PDF
H-MFAC4-12N-BRAS			31.80	3/4	1/4	PDF
H-MFAC6-12N-BRAS			31.80	3/4	3/8	PDF
H-MFAC8-12N-BRAS			31.80	3/4	1/2	PDF
H-MFAC4-16N-BRAS			41.20	1	1/4	PDF
H-MFAC8-16N-BRAS			41.20	1	1/2	PDF
H-MFAC16-16N-BRAS			41.20	1	1	PDF
H-MFAC2-4N-STEL			19.05	1/4	18	PDF
H-MFAC2-6N-STEL			22.20	3/8	1/8	PDF
H-MFAC4-6N-STEL			22.20	3/8	1/4	PDF
H-MFAC2-8N-STEL			26.90	1/2	1/8	PDF
H-MFAC4-8N-STEL			26.90	1/2	1/4	PDF
H-MFAC6-8N-STEL			26.90	1/2	3/8	PDF
H-MFAC4-12N-STEL			31.80	3/4	1/4	PDF
H-MFAC6-12N-STEL			31.80	3/4	3/8	PDF
H-MFAC8-12N-STEL			31.80	3/4	1/2	PDF
H-MFAC4-16N-STEL			41.20	1	1/4	PDF
H-MFAC8-16N-STEL			41.20	1	1/2	PDF
H-MFAC16-16N-STEL			41.20	1	1	PDF
H-MFAC2-4N-S316			19.05	1/4	18	PDF
H-MFAC2-6N-S316			22.20	3/8	1/8	PDF
H-MFAC4-6N-S316			22.20	3/8	1/4	PDF
H-MFAC2-8N-S316			26.90	1/2	1/8	PDF
H-MFAC4-8N-S316			26.90	1/2	1/4	PDF
H-MFAC6-8N-S316			26.90	1/2	3/8	PDF
H-MFAC4-12N-S316			31.80	3/4	1/4	PDF
H-MFAC6-12N-S316			31.80	3/4	3/8	PDF
H-MFAC8-12N-S316			31.80	3/4	1/2	PDF
H-MFAC4-16N-S316			41.20	1	1/4	PDF
H-MFAC8-16N-S316			41.20	1	1/2	PDF
H-MFAC16-16N-S316			41.20	1	1	PDF
