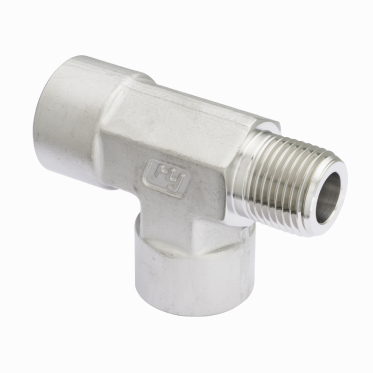

Run Tee

  • Precision pipe fittings for instrumentation and process control
  • Fine threads constructed to ensure leak-free & reliable systems
  • Male threads are protected with plastic cap
  • Various materials including SS316, Brass and Carbon steel
  • Many choice of connections and configurations are available
  • Female to male to female NPT
SKU N/A Category

Description

Product Dimension E (mm) Dimension L (mm) Dimension S (mm) Pipe Size (in) Wrench Flat H (mm) PDF
H-SRT-2N-BRAS 4.80 24.00 19.60 1/8 12.70 PDF
H-SRT-4N-BRAS 7.10 29.00 26.50 1/4 17.50 PDF
H-SRT-6N-BRAS 9.60 34.50 28.20 3/8 20.60 PDF
H-SRT-8N-BRAS 11.90 37.00 35.30 1/2 25.40 PDF
H-SRT-12N-BRAS 15.70 46.50 39.60 3/4 31.80 PDF
H-SRT-16N-BRAS 22.30 48.80 49.20 1 42.90 PDF
H-SRT-2N-STEL 4.80 24.00 19.60 1/8 12.70 PDF
H-SRT-4N-STEL 7.10 29.00 26.50 1/4 17.50 PDF
H-SRT-6N-STEL 9.60 34.50 28.20 3/8 20.60 PDF
H-SRT-8N-STEL 11.90 37.00 35.30 1/2 25.40 PDF
H-SRT-12N-STEL 15.70 46.50 39.60 3/4 31.80 PDF
H-SRT-16N-STEL 22.30 48.80 49.20 1 42.90 PDF
H-SRT-2N-S316 4.80 24.00 19.60 1/8 12.70 PDF
H-SRT-4N-S316 7.10 29.00 26.50 1/4 17.50 PDF
H-SRT-6N-S316 9.60 34.50 28.20 3/8 20.60 PDF
H-SRT-8N-S316 11.90 37.00 35.30 1/2 25.40 PDF
H-SRT-12N-S316 15.70 46.50 39.60 3/4 31.80 PDF
H-SRT-16N-S316 22.30 48.80 49.20 1 42.90 PDF
