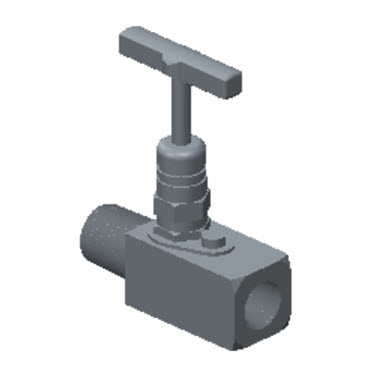

Rising Plug Valve

  • Pressure rating up to 6,000 psi (413 bar) at 100°F (38°C).
  • Temperature rating from -20°F to 250°F (-29°C to 121°C) with PCTFE seat standard, and up to 400°F (204°C) with optional PEEK seat.
  • Stem seal to keep actuation threads clean.
  • Non-rotating stem tip minimizes seat wear-out.
  • Robust body design with safety bonnet locking plate.
  • Orifice in straight flow path ensures max CV.
  • PCTFE seat standard, PEEK available.
  • Sour gas service available.
  • Gauge port option available.
  • Variety of end connections include male/female NPT, ISO, BSP threads and female Hy-Lok tube fittings.
  • Body Material is available is 316 stainless steel standard.
SKU N/A Category

Description

Product Inlet End Connection Orifice (mm) Outlet End Connection Flow Coefficient (Cv) Dimension L1 (mm) Dimension L2 (mm) Dimension H (mm) Dimension S (mm) PDF
RPVF-4N-S316 1/4″ Female NPT 6.30 1/4″ Female NPT 1.8 62.00 95.40 60.00 25.40 PDF
RPVMF-4N-S316 1/4″ Male NPT 6.30 1/4″ Female NPT 1.8 74.00 95.40 60.00 25.40 PDF
RPVF-8N-S316 1/2″ Female NPT 6.30 1/2″ Female NPT 1.8 84.00 97.50 60.00 32.00 PDF
RPVMF-8N-S316 1/2″ Male NPT 6.30 1/2″ Female NPT 1.8 90.00 97.50 60.00 32.00 PDF
RPVMF-12N8N-S316 3/4″ Male NPT 6.30 1/2″ Female NPT 1.8 90.00 97.50 60.00 32.00 PDF
