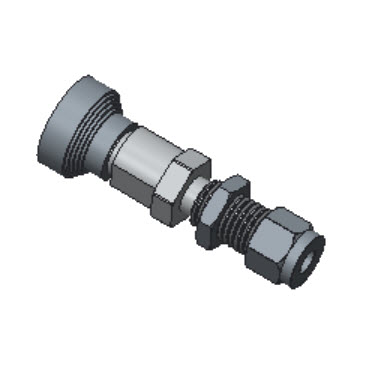

Q Series Hy-Lok Bulkhead Tube Body Connector Fittings

SKU N/A Category

Description

Product Length (L) (in) Length (L) (mm) Diameter (D) (in) Diameter (D) (mm) Width Across Flat (H) (mm) Width Across Flat (H) (in) Working Pressure (psig) Working Pressure (bar) Temperature Rating with FKM O-Ring (ºC) Temperature Rating with FKM O-Ring (ºF) PDF
Q1BBH-4T 2.670 67.80 0.910 23.10 15.80 5/8 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q2BBH-6T 2.980 75.70 1.030 26.20 19.10 3/4 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q3BBH-8T 3.560 90.40 1.210 30.70 23.80 15/16 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q1BBH-6M 2.670 67.80 0.910 23.10 16.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q2BBH-10M 2.990 75.90 1.030 26.20 22.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
Q3BBH-12M 3.560 90.40 1.210 30.70 24.00 Up to 3000 Up to 206 -23 ~ 204 -10 ~ 400 PDF
