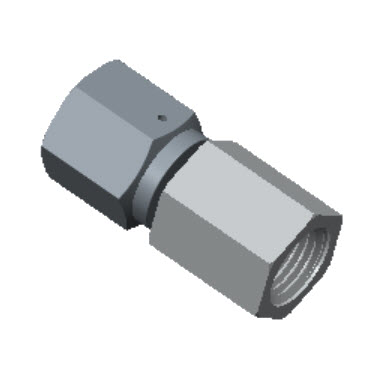

Swivel Female NPT Connector


  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.


Product Dimension d (in) Dimension d (mm) Dimension H (in) Dimension H1 (in) Dimension L (in) Dimension L (mm) Dimension P (in) ZCR Size (in) PDF
H-ZSFC4-4N 0.180 4.55 3/4 3/4 1.770 45.00 1/4 1/4 PDF
H-ZSFC8-6N 0.400 10.14 1 1/16 7/8 1.950 49.50 3/8 3/8 PDF
H-ZSFC8-8N 0.400 10.14 1 1/16 1 1/16 2.180 55.40 1/2 1/2 PDF
