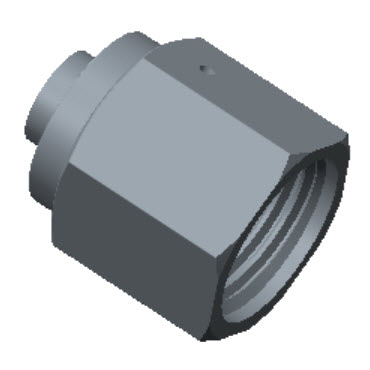

Cap

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
SKU N/A Category

Description

Product Dimension H (in) Dimension L (in) Dimension L (mm) Dimension L1 (in) Dimension L1 (mm) ZCR Size (in) PDF
H-ZCP-2 7/16 0.630 16.00 0.300 7.60 1/8 PDF
H-ZCP-4 3/4 0.940 23.90 0.440 11.30 1/4 PDF
H-ZCP-8 1 1/16 1.010 25.60 0.450 11.40 1/2 PDF
H-ZCP-12 1 1/2 1.290 32.80 0.540 13.70 3/4 PDF
H-ZCP-16 1 3/4 1.540 39.10 0.630 16.00 1 PDF
