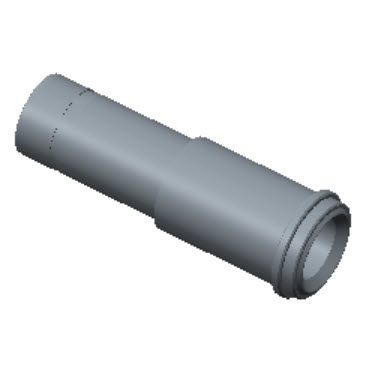

Tube Adapter Gland

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
SKU N/A Category

Description

Product Dimension C (in) Dimension C (mm) Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Tube Socket (in) ZCR Size (in) PDF
H-ZGT-4 0.64 16.20 0.170 4.30 1.620 41.00 1/4 1/4 PDF
H-ZGT-6 0.70 17.80 0.270 6.80 1.810 46.00 3/8 1/2 PDF
H-ZGT-8 0.96 24.40 0.370 9.40 1.940 49.30 1/2 1/2 PDF
