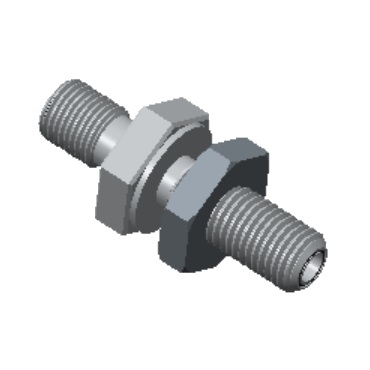

Bulkhead Union

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Connects ZCO glands.
SKU N/A Category

Description

Product Dimension D (in) Dimension D (mm) Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Hex Flat H (in) Hex Flat H₁ (in) Max. Panel Thickness (in) Panel Hole Size (in) Size (in) Working Pressure (psig) Working Pressure (bar) PDF
H-ZCOBHU-4-S316 1.060 26.92 0.180 4.57 1.880 47.75 3/4 3/4 0.360 37/64 1/4 14300 980 PDF
H-ZCOBHU-8-S316 1.190 30.23 0.400 10.16 2.090 53.09 1 1/16 1 1/16 0.400 57/64 1/2 11100 760 PDF
