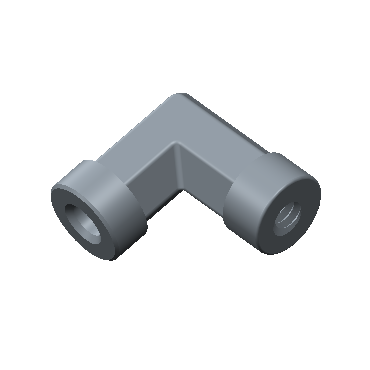

Female Elbow (H-SLD)

SKU N/A Category

Description

Product Dimension D (mm) Dimension d (mm) Dimension E (mm) Dimension H (mm) Dimension L (mm) Dimension L₁ (mm) Dimension P (in) Tube O.D. (in) PDF
H-SLD4T-4N-S316 12.20 4.80 7.10 17.40 22.90 29.70 1/4 1/4 PDF
H-SLD6T-4N-S316 15.30 7.10 7.90 17.40 25.10 29.70 1/4 3/8 PDF
H-SLD6T-8N-S316 15.30 7.10 7.90 25.40 28.70 37.00 1/2 3/8 PDF
H-SLD8T-8N-S316 18.50 10.20 9.70 25.40 30.20 37.00 1/2 1/2 PDF
