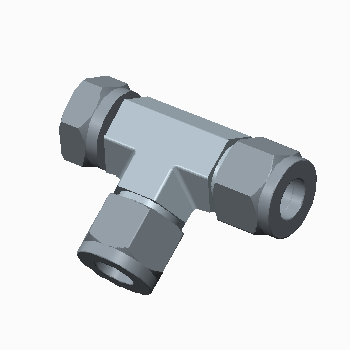

Swivel Run Tee

SKU N/A Category

Description

Product Type Material Tube O.D. (in) Tube O.D. (mm) Dimension D (mm) Width Across Flat h (mm) Width Across Flat h (in) Width Across Flat (H) (in) Width Across Flat (H) (mm) Dimension A (mm) Dimension B (mm) Dimension l (mm) Dimension L1 (mm) Dimension L2 (mm)
CRST-4-BRAS Brass 1/4 6.35 4.82 12.70 1/2 9/16 14.28 15.24 17.78 19.55 26.92 25.08
CRST-6-BRAS Brass 3/8 9.52 7.11 15.87 5/8 11/16 17.46 16.76 19.30 23.11 30.48 28.48
CRST-8-BRAS Brass 1/2 12.7 10.41 20.63 13/16 7/8 22.22 22.86 21.84 25.90 36.06 36.91
CRST-10-BRAS Brass 5/8 15.87 12.70 23.80 15/16 1 25.40 24.38 21.84 28.70 38.80 41.34
CRST-12-BRAS Brass 3/4 19.05 15.74 26.98 1 1/16 1 1/8 28.57 24.38 21.84 29.71 39.87 42.45
CRST-14-BRAS Brass 7/8 22.22 18.28 30.00 1 3/16 1 1/4 31.75 25.9 21.84 34.54 44.70 49.30
CRST-16-BRAS Brass 1 25.4 22.35 34.92 1 3/8 1 1/2 38.10 31.24 26.41 36.83 49.02 53.11
CRST-4-STEL Steel 1/4 6.35 4.82 12.70 1/2 9/16 14.28 15.24 17.78 19.55 26.92 25.08
CRST-6-STEL Steel 3/8 9.52 7.11 15.87 5/8 11/16 17.46 16.76 19.30 23.11 30.48 28.48
CRST-8-STEL Steel 1/2 12.7 10.41 20.63 13/16 7/8 22.22 22.86 21.84 25.90 36.06 36.91
CRST-10-STEL Steel 5/8 15.87 12.70 23.80 15/16 1 25.40 24.38 21.84 28.70 38.80 41.34
CRST-12-STEL Steel 3/4 19.05 15.74 26.98 1 1/16 1 1/8 28.57 24.38 21.84 29.71 39.87 42.45
CRST-14-STEL Steel 7/8 22.22 18.28 30.00 1 3/16 1 1/4 31.75 25.9 21.84 34.54 44.70 49.30
CRST-16-STEL Steel 1 25.4 22.35 34.92 1 3/8 1 1/2 38.10 31.24 26.41 36.83 49.02 53.11
CRST-4-S316 Stainless Steel 316 1/4 6.35 4.82 12.70 1/2 9/16 14.28 15.24 17.78 19.55 26.92 25.08
CRST-6-S316 Stainless Steel 316 3/8 9.52 7.11 15.87 5/8 11/16 17.46 16.76 19.30 23.11 30.48 28.48
CRST-8-S316 Stainless Steel 316 1/2 12.7 10.41 20.63 13/16 7/8 22.22 22.86 21.84 25.90 36.06 36.91
CRST-10-S316 Stainless Steel 316 5/8 15.87 12.70 23.80 15/16 1 25.40 24.38 21.84 28.70 38.80 41.34
CRST-12-S316 Stainless Steel 316 3/4 19.05 15.74 26.98 1 1/16 1 1/8 28.57 24.38 21.84 29.71 39.87 42.45
CRST-14-S316 Stainless Steel 316 7/8 22.22 18.28 30.00 1 3/16 1 1/4 31.75 25.9 21.84 34.54 44.70 49.30
CRST-16-S316 Stainless Steel 316 1 25.4 22.35 34.92 1 3/8 1 1/2 38.10 31.24 26.41 36.83 49.02 53.11
CRST-6M-BRAS Brass 6 4.80 12.70 14.00 15.3 17.70 19.60 27.00 25.07
CRST-8M-BRAS Brass 8 6.30 14.30 16.00 16.2 18.60 21.30 28.80 26.81
CRST-10M-BRAS Brass 10 7.90 17.50 19.00 17.2 19.50 23.90 31.50 30.11
CRST-12M-BRAS Brass 12 9.50 20.60 22.00 22.8 22.00 25.90 36.00 36.91
CRST-15M-BRAS Brass 15 11.90 23.80 25.00 24.4 22.00 28.70 38.80 41.31
CRST-16M-BRAS Brass 16 12.70 23.80 25.00 24.4 22.00 28.70 38.80 41.34
CRST-18M-BRAS Brass 18 15.10 27.00 30.00 24.4 22.00 29.70 39.80 42.38
CRST-20M-BRAS Brass 20 15.90 30.00 32.00 26 22.00 32.50 42.60 47.11
CRST-22M-BRAS Brass 22 18.30 30.00 32.00 26 22.00 32.50 42.60 49.16
CRST-25M-BRAS Brass 25 21.80 34.90 38.00 31.3 26.50 36.80 49.10 53.79
CRST-6M-STEL Steel 6 4.80 12.70 14.00 15.3 17.70 19.60 27.00 25.07
CRST-8M-STEL Steel 8 6.30 14.30 16.00 16.2 18.60 21.30 28.80 26.81
CRST-10M-STEL Steel 10 7.90 17.50 19.00 17.2 19.50 23.90 31.50 30.11
CRST-12M-STEL Steel 12 9.50 20.60 22.00 22.8 22.00 25.90 36.00 36.91
CRST-15M-STEL Steel 15 11.90 23.80 25.00 24.4 22.00 28.70 38.80 41.31
CRST-16M-STEL Steel 16 12.70 23.80 25.00 24.4 22.00 28.70 38.80 41.34
CRST-18M-STEL Steel 18 15.10 27.00 30.00 24.4 22.00 29.70 39.80 42.38
CRST-20M-STEL Steel 20 15.90 30.00 32.00 26 22.00 32.50 42.60 47.11
CRST-22M-STEL Steel 22 18.30 30.00 32.00 26 22.00 32.50 42.60 49.16
CRST-25M-STEL Steel 25 21.80 34.90 38.00 31.3 26.50 36.80 49.10 53.79
CRST-6M-S316 Stainless Steel 316 6 4.80 12.70 14.00 15.3 17.70 19.60 27.00 25.07
CRST-8M-S316 Stainless Steel 316 8 6.30 14.30 16.00 16.2 18.60 21.30 28.80 26.81
CRST-10M-S316 Stainless Steel 316 10 7.90 17.50 19.00 17.2 19.50 23.90 31.50 30.11
CRST-12M-S316 Stainless Steel 316 12 9.50 20.60 22.00 22.8 22.00 25.90 36.00 36.91
CRST-15M-S316 Stainless Steel 316 15 11.90 23.80 25.00 24.4 22.00 28.70 38.80 41.31
CRST-16M-S316 Stainless Steel 316 16 12.70 23.80 25.00 24.4 22.00 28.70 38.80 41.34
CRST-18M-S316 Stainless Steel 316 18 15.10 27.00 30.00 24.4 22.00 29.70 39.80 42.38
CRST-20M-S316 Stainless Steel 316 20 15.90 30.00 32.00 26 22.00 32.50 42.60 47.11
CRST-22M-S316 Stainless Steel 316 22 18.30 30.00 32.00 26 22.00 32.50 42.60 49.16
CRST-25M-S316 Stainless Steel 316 25 21.80 34.90 38.00 31.3 26.50 36.80 49.10 53.79
