Instrument Valve Assembly Torques

Download manual

This manual provides the assembly and torque information for thirteen different instrument valves manufactured by Hy-Lok. These valves are intended for chemical processing, pharmaceuticals, and more. This guide can be utilized during installation on a piping system to exert the correct torque and ensure a tight seal on the instrument valve.

What's Inside

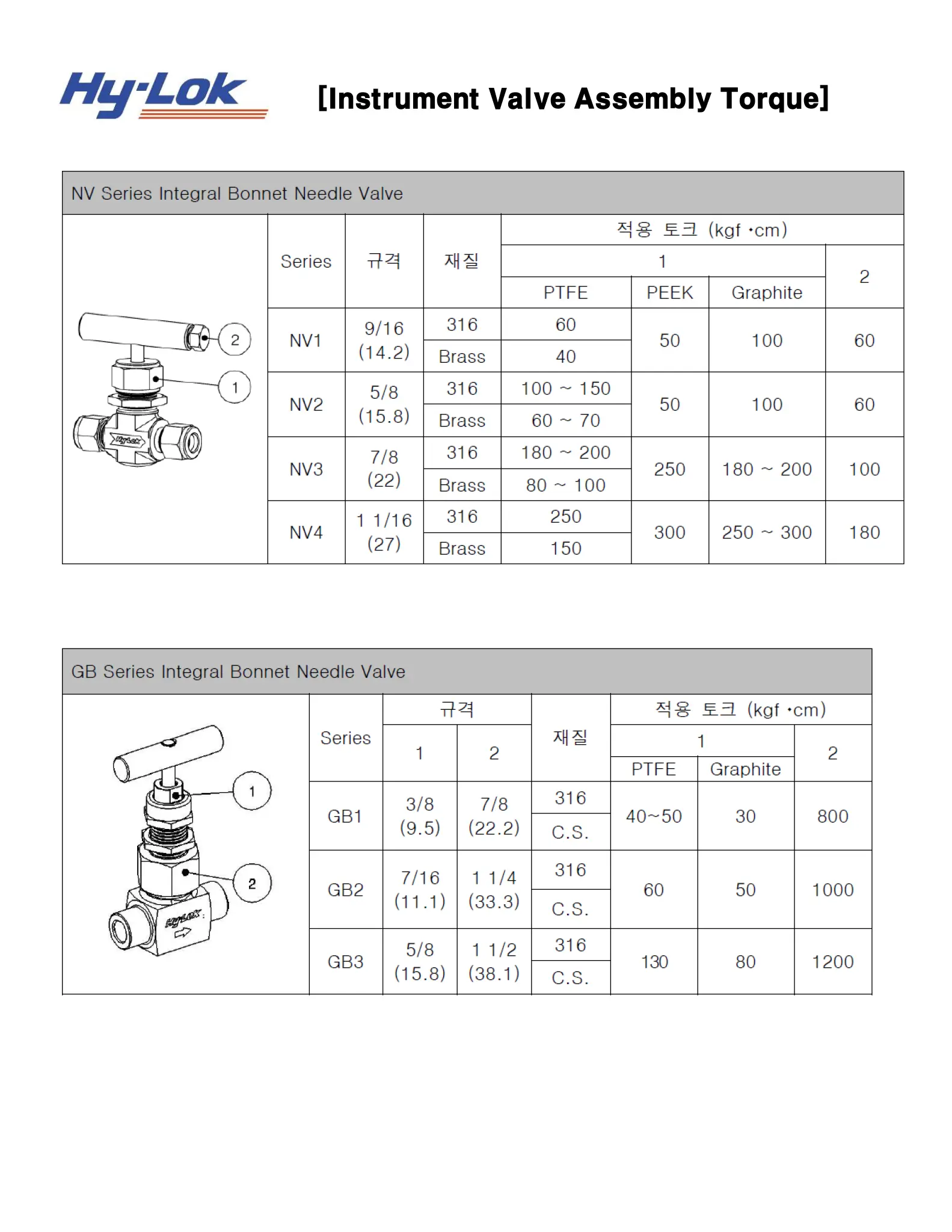

Instrument Valve Assembly Torque
- NV Series Integral Bonnet Needle Valve
- M Series Manifold, Gage, & Root Valves
- GB Series Integral Bonnet Needle Valve
- NSNV Series Needle Valve
- 110 Series Ball Valve
- 105 Series High-Pressure Ball Valve
- 112(S) Series Ball Valve
- SO Series Ball Valve
- 700 Series Check Valve (CV)
- RV Series Relief Valve
- 700H Series Hgh Pressure Check Valve (CVH)
- MT1 Series Metering Valve

Key Highlights

By reviewing the information in this manual, you will be able to:

Exert the correct torque when installing one of the listed Instrument Valves to your piping system, ensuring a secure seal
Correctly assemble and disassemble Instrument Valves for maintenance, parts replacement, and installation
