105 Series Ball Valve

Download manual

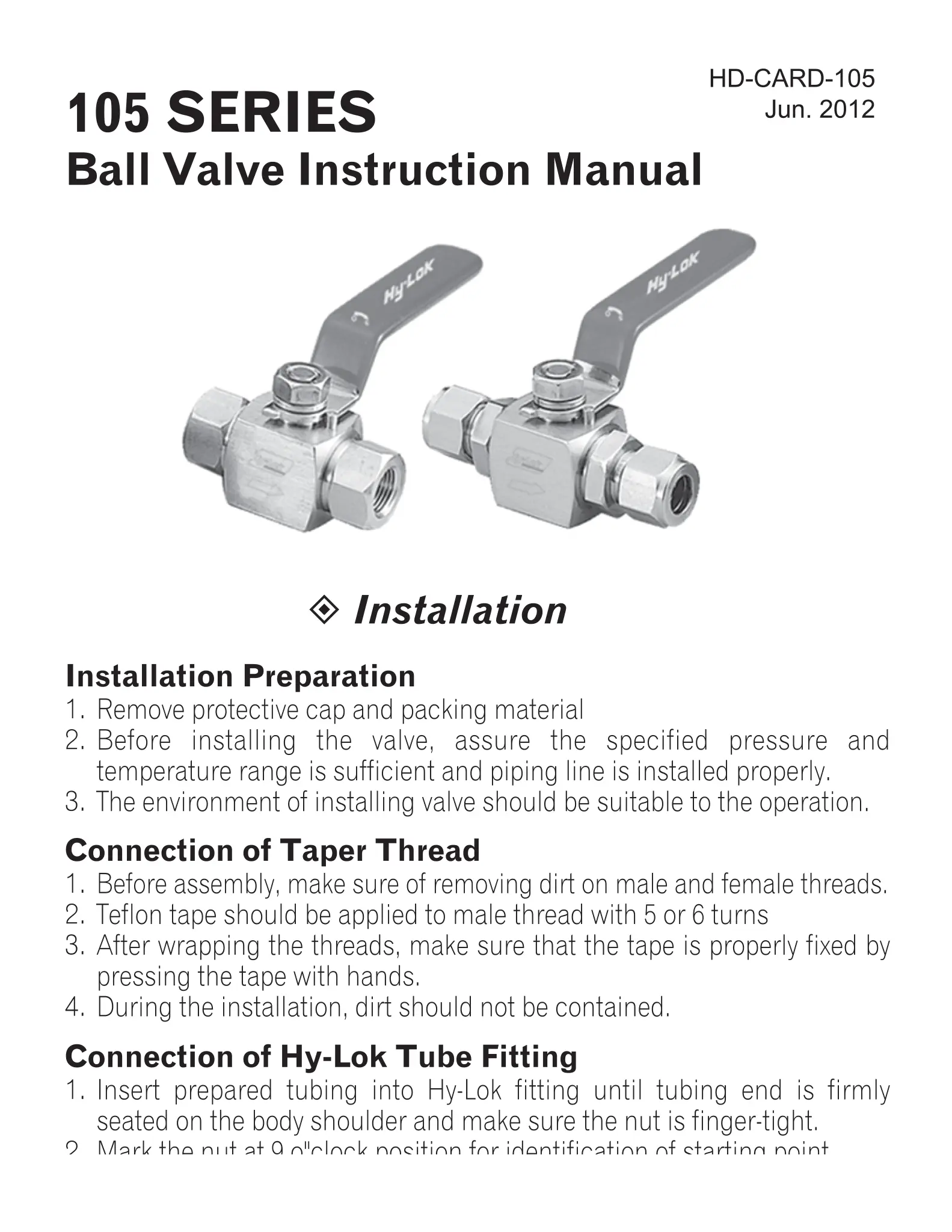

This manual offers instruction on properly installing, operating, and maintaining the 105 Series Ball Valve for commercial piping systems. Note that this valve cannot be used with CNG (compressed natural gas) systems. Before installation, ensure your piping line is secure and your pressure and temperature range are pre-set. Have a wrench and screwdriver on hand to connect the Hy-Lok Tube fitting and mount your panel.

What's Inside

  • Installation
  • Operation
  • Maintenance
    • Standard Type
    • Side Entry Type
    • Bottom Entry Type
    • Panel Mounting Type
      • Disassembly
      • Reassembly
  • Removal

Key Highlights

After reviewing the instructions in this manual, you will be able to:

  • Properly install and operate the 105 Series Ball Valve manually
  • Stop a leak in progress and prepare for parts replacement
  • Disassemble and reassemble side entry, bottom entry, and panel mounting valve types
  • Operate the Ball Valve locking device
  • Remove and clean the valve

105 Series Ball Valve


Visit our Instruction Manuals page to explore a variety of other guides and resources.”
