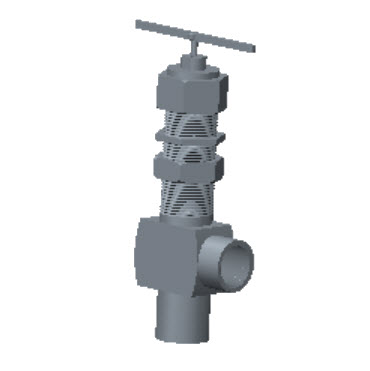

Angular Pattern Union Bonnet Valves

  • Pressure rating up to 6000psig (410bar) at 100ºF(38ºC)
  • Temperature rating form -66ºF to 450ºF(-54ºC to 232ºC) with standard PTFE pocking and up to 1200ºF (648ºC) with optional Grafoil packing
  • Body materials available in 316 stainless steel, carbon steel, and alloy 400
  • 100% factory tested.
Contact us
Find a distributor
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Orifice (mm) Inlet End Connection Outlet End Connection S Angle (mm) S Straight (mm) Dimension L (mm) Dimension L3 (mm) Dimension P (mm) Dimension M (mm) Dimension M1 (mm) Dimension M2 (mm) Dimension N1 (mm) Dimension Q (mm) PDF
GB1F-2N-S316 4.00 1/8″Female NPT 1/8″Female NPT 82.60 77.80 50.80 25.40 45.00 32.60 27.80 32.60 9.60 15.10 PDF
GB1F-4N-S316 4.00 1/4″Female NPT 1/4″Female NPT 82.60 77.80 52.40 25.40 45.00 32.60 27.80 32.60 9.60 15.10 PDF
GB1M-4N-S316 4.00 1/4″Male NPT 1/4″Male NPT 82.60 77.80 50.80 25.40 45.00 35.00 27.80 32.60 9.60 15.10 PDF
GB1MF-4N-S316 4.00 1/4″Male NPT /1/4″Female NPT 1/4″Male NPT /1/4″Female NPT 82.60 77.80 52.40 25.40 45.00 32.60 27.80 32.60 9.60 15.10 PDF
GB1H-6M-S316 4.00 6mm Hy-Lok 6mm Hy-Lok 77.80 77.80 61.90 37.30 45.00 38.90 27.80 27.80 9.60 15.10 PDF
GB1H-4T-S316 4.00 1/4″Hy-Lok 1/4″Hy-Lok 77.80 77.80 61.90 37.30 45.00 38.90 27.80 27.80 9.60 15.10 PDF
GB1SW-4T-S316 4.00 1/4″Tube Weld 1/4″Tube Weld 77.80 77.80 46.00 30.20 45.00 31.80 27.80 27.80 9.60 15.10 PDF
GB1H-8M-S316 4.00 8mm Hy-Lok 8mm Hy-Lok 77.80 77.80 61.90 37.30 45.00 38.90 27.80 27.80 9.60 15.10 PDF
GB2F-4N-S316 6.40 1/4″Female NPT 1/4″Female NPT 96.90 93.70 57.20 28.60 64.00 38.10 34.10 37.30 12.70 19.90 PDF
GB2F-6N-S316 6.40 3/8″Female NPT 3/8″Female NPT 96.90 93.70 57.20 28.60 64.00 38.10 34.10 37.30 12.70 19.90 PDF
GB2H-10M-S316 6.40 10mm Hy-Lok 10mm Hy-Lok 93.70 93.70 73.00 39.70 64.00 46.10 34.10 34.20 12.70 19.90 PDF
GB2H-6T-S316 6.40 3/8″Hy-Lok 3/8″Hy-Lok 90.50 93.70 73.00 42.90 64.00 45.30 34.10 31.00 12.70 19.90 PDF
GB2H-12M-S316 6.40 12mm Hy-Lok 12mm Hy-Lok 93.70 93.70 77.80 42.10 64.00 48.40 34.10 34.20 12.70 19.90 PDF
GB2H-8T-S316 6.40 1/2″Hy-Lok 1/2″Hy-Lok 93.70 93.70 77.80 42.10 64.00 47.60 34.10 34.20 12.70 19.90 PDF
GB2SW-4P-S316 6.40 1/4″Pipe Weld 1/4″Pipe Weld 93.70 93.70 57.20 28.60 64.00 38.10 34.10 37.30 12.70 19.90 PDF
GB2SW-6T-S316 6.40 3/8″Tube Weld 3/8″Tube Weld 93.70 93.70 57.20 28.60 64.00 38.10 34.10 37.30 12.70 19.90 PDF
GB2SW-8T-S316 6.40 1/2″Tube Weld 1/2″Tube Weld 95.30 93.70 57.20 25.40 64.00 38.10 34.10 35.70 12.70 19.90 PDF
GB3F-8N-S316 11.00 1/2″Female NPT 1/2″Female NPT 126.20 121.50 79.40 39.70 89.00 50.80 46.10 50.80 15.90 26.20 PDF
GB3F-12N-S316 11.00 3/4″Female NPT 3/4″Female NPT 123.90 82.60 89.00 48.40 19.90 26.20 PDF
GB3MF-8N-S316 11.00 1/2″Male NPT/ 1/2″Female NPT 1/2″Male NPT/ 1/2″Female NPT 126.20 121.50 79.40 39.70 89.00 50.80 46.00 50.80 15.90 26.20 PDF
GB3H-8T-S316 11.00 1/2″Hy-Lok 1/2″Hy-Lok 123.10 121.50 100.00 53.20 89.00 61.10 46.00 47.60 20.00 26.20 PDF
GB3H-12T-S316 11.00 3/4″Hy-Lok 3/4″Hy-Lok 123.10 121.50 100.00 53.20 89.00 61.10 46.00 47.60 20.20 26.20 PDF
GB3SW-8P-S316 11.00 1/2″Pipe Weld 1/2″Pipe Weld 126.20 123.10 79.40 39.70 89.00 50.80 47.60 50.80 20.00 26.20 PDF
GB3SW-8T-S316 11.00 1/2″Tube Weld 1/2″Tube Weld 123.10 121.50 79.40 42.90 89.00 50.80 46.00 47.60 15.90 26.20 PDF
GB3SW-12T-S316 11.00 3/4″Tube Weld 3/4″Tube Weld 121.50 79.40 89.00 46.00 15.90 26.20 PDF
