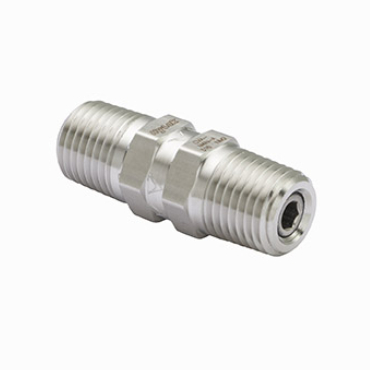

One-piece Pipe-Ended Adjustable Check Valves

SKU N/A Category

Description

Product Inlet Outlet Flow Coefficient (Cv) Flow Diameter Body Material Dimension L (mm) Dimension L (in) Dimension H (mm) Dimension H (in) PDF
CVA-M4N-BRAS 1/4″ Male NPT 1/4″ Male NPT 0.4 4.8 Brass 41.10 1.620 14.20 9/16 PDF
CVA-M4R-BRAS 1/4″ Male ISO Tapered 1/4″ Male ISO Tapered 0.4 4.8 Brass 41.10 1.620 14.20 9/16 PDF
CVA-F4N-BRAS 1/4″ Ferrate NPT 1/4″ Female NPT 0.4 4.8 Brass 75.70 2.980 19.05 3/4 PDF
CVA-M8N-BRAS 1/2″ Mate NPT 1/2″ Male NPT 1.2 10.0 Brass 65.00 2.550 22.22 7/8 PDF
CVA-M8R-BRAS 1/2″ Mate PT 1/2″ Male PT 1.2 10.0 Brass 65.00 2.550 22.22 7/8 PDF
CVA-M4N-S316 1/4″ Male NPT 1/4″ Male NPT 0.4 4.8 Stainless steel 316 41.10 1.620 14.20 9/16 PDF
CVA-M4R-S316 1/4″ Male ISO Tapered 1/4″ Male ISO Tapered 0.4 4.8 Stainless steel 316 41.10 1.620 14.20 9/16 PDF
CVA-F4N-S316 1/4″ Ferrate NPT 1/4″ Female NPT 0.4 4.8 Stainless steel 316 75.70 2.980 19.05 3/4 PDF
CVA-M8N-S316 1/2″ Mate NPT 1/2″ Male NPT 1.2 10.0 Stainless steel 316 65.00 2.550 22.22 7/8 PDF
CVA-M8R-S316 1/2″ Mate PT 1/2″ Male PT 1.2 10.0 Stainless steel 316 65.00 2.550 22.22 7/8 PDF
