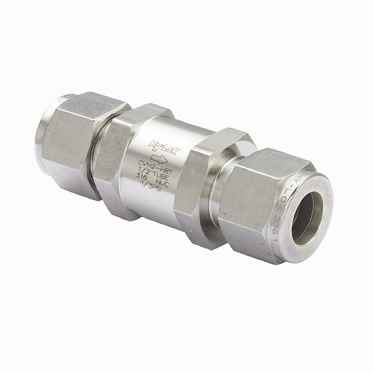

700H Series: High Pressure Compact Check Valves

  • Pressure rating up to 6,000 psig(413 bar) at 70°F(20°C)
  • Temperature rating up to 375°F(190°C) with Viton seal standard.
  • Suitable for gas and liquids.
  • Blow-out resistant and stop reversing flow design.
  • SS316 body material as standard.
  • 100% factory tested
Contact us
Find a distributor
SKU N/A Category
[variations_table]
[extract_table_to_array]

Description

Product Body Material Inlet End Connection Outlet End Connection Flow Dia. (mm) Max. Cv Dimension L (mm) Dimension l (mm) Dimension H (Nut Hex) (mm) Dimension H1 (Body Hex) (mm) PDF
CVH1-H-2T-S316 Stainless steel 316 1/8″ Hy-Lok 1/8″ Hy-Lok 4.80 0.67 57.70 32.10 11.10 17.46 PDF
CVH1-H-4T-S316 Stainless steel 316 1/4″ Hy-Lok 1/4″ Hy-Lok 4.80 0.67 61.70 31.20 14.20 17.46 PDF
CVH1-H-6M-S316 Stainless steel 316 6mm Male NPT 6mm Male NPT 4.80 0.67 61.70 31.10 14.00 17.46 PDF
CVH1-F-4N-S316 Stainless steel 316 1/4″ Female NPT 1/4″ Female NPT 4.80 0.67 54.10 17.46 PDF
CVH1-M-2N-S316 Stainless steel 316 1/8″ Male NPT 1/8″ Male NPT 4.80 0.67 45.50 17.46 PDF
CVH1-M-4N-S316 Stainless steel 316 1/4″ Male NPT 1/4″ Male NPT 4.80 0.67 55.10 17.46 PDF
CVH1-V-4-S316 Stainless steel 316 1/4″ Metal Gasket Seal 1/4″ Metal Gasket Seal 4.80 0.67 57.90 17.46 PDF
CVH1-ZCO-4-S316 Stainless steel 316 1/4″ 0-Ring Face Seal 1/4″ 0-Ring Face Seal 4.80 0.67 50.30 17.46 PDF
CVH2-H-6T-S316 Stainless steel 316 3/8″ Hy-Lok 3/8″ Hy-Lok 7.80 1.80 69.90 36.10 17.46 25.40 PDF
CVH2-H-8T-S316 Stainless steel 316 1/2″ Hy-Lok 1/2″ Hy-Lok 7.80 1.80 75.20 29.50 22.22 25.40 PDF
CVH2-H-8M-S316 Stainless steel 316 8mm Hy-Lok 8mm Hy-Lok 7.80 1.80 68.60 36.20 16.00 25.40 PDF
CVH2-H-10M-S316 Stainless steel 316 10mm Hy-Lok 10mm Hy-Lok 7.80 1.80 71.10 36.70 19.00 25.40 PDF
CVH2-H-12M-S316 Stainless steel 316 12mm Hy-Lok 12mm Hy-Lok 7.80 1.80 75.20 29.60 22.00 25.40 PDF
CVH2-F-6N-S316 Stainless steel 316 3/8″ Female NPT 3/8″ Female NPT 7.80 1.80 64.80 25.40 PDF
CVH2-F-8N-S316 Stainless steel 316 1/2″ Female NPT 1/2″ Female NPT 7.80 1.80 77.00 26.90 PDF
CVH2-M-6N-S316 Stainless steel 316 3/8″ Male NPT 3/8″ Male NPT 7.80 1.80 59.90 25.40 PDF
CVH2-M-8N-S316 Stainless steel 316 1/2″ Male NPT 1/2″ Male NPT 7.80 1.80 69.30 25.40 PDF
CVH2-V-8-S316 Stainless steel 316 1/2″ Metal Gasket Seal 1/2″ Metal Gasket Seal 7.80 1.80 69.30 25.40 PDF
CVH2-ZCO-8-S316 Stainless steel 316 1/2″ O-Ring Face Seal 1/2″ O-Ring Face Seal 7.80 1.80 59.70 25.40 PDF
CVH3-H-12T-S316 Stainless steel 316 3/4″ Hy-Lok 3/4″ Hy-Lok 15.00 4.70 89.40 40.60 28.58 41.28 PDF
CVH3-H-16T-S316 Stainless steel 316 1″ Hy-lok 1″ Hy-lok 15.00 4.70 98.60 36.10 38.10 41.28 PDF
CVH3-H-22M-S316 Stainless steel 316 22mm Hy-Lok 22mm Hy-Lok 15.00 4.70 88.40 36.40 32.00 41.28 PDF
CVH3-H-25M-S316 Stainless steel 316 25mm Hy-Lok 25mm Hy-Lok 15.00 4.70 98.60 36.00 40.00 41.28 PDF
CVH3-F-12N-S316 Stainless steel 316 3/4″ Female NPT 3/4″ Female NPT 15.00 4.70 82.00 41.28 PDF
CVH3-F-16N-S316 Stainless steel 316 1″ Female NPT 1″ Female NPT 15.00 4.70 97.30 41.28 PDF
CVH3-M-12N-S316 Stainless steel 316 3/4″ Male NPT 3/4″ Male NPT 15.00 4.70 83.60 41.28 PDF
CVH3-M-16N-S316 Stainless steel 316 1″ Male NPT 1″ Male NPT 15.00 4.70 93.20 41.28 PDF
CVH3-V-12-S316 Stainless steel 316 3/4″ Metal Gasket Seal 3/4″ Metal Gasket Seal 15.00 4.70 96.00 41.28 PDF
CVH3-ZCO-12-S316 Stainless steel 316 3/4″ O-Ring Face Seal 3/4″ O-Ring Face Seal 15.00 4.70 73.70 41.28 PDF
CVH3-ZCO-16-S316 Stainless steel 316 1″ O-Ring Face Seal 1″ O-Ring Face Seal 15.00 4.70 73.70 41.28 PDF
