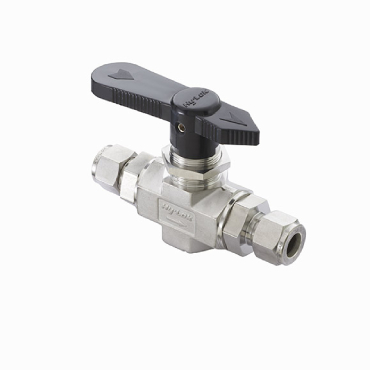

| Product | Orifice (in) | Orifice (mm) | Outlet End Connection | Dimension E (mm) | Dimension H (mm) | Dimension P (in) | Dimension H (in) | Dimension D (in) | Dimension E (in) | Dimension F (in) | Dimension F (mm) | Dimension G (mm) | Dimension P (mm) | Dimension T (mm) | Dimension G (in) | Dimension T (in) | |
| HB1H-1T-BRAS | 0.052 | 1.30 | 1/16″ Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1H-2T-BRAS | 0.093 | 2.40 | 1/8″ Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1F-2N-BRAS | 0.165 | 4.20 | 1/8″ Female NPT | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1M-2N-BRAS | 0.165 | 4.20 | 1/8″ Male NPT | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1H-4T-BRAS | 0.165 | 4.20 | 1/4″ Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1M-4N-BRAS | 0.165 | 4.20 | 1/4″ Male | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1H-3M-BRAS | 0.086 | 2.20 | 3mm Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB2H-2T-BRAS | 0.093 | 2.40 | 1/8″ Hy-Lok | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2H-4T-BRAS | 0.189 | 4.80 | 1/4″ Hy-Lok | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2F-4N-BRAS | 0.250 | 6.40 | 1/4″ Female NPT | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2M-4N-BRAS | 0.250 | 6.40 | 1/4″ Male NPT | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2H-6T-BRAS | 0.250 | 6.40 | 3/8″ Hy-Lok | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2M-6N-BRAS | 0.250 | 6.40 | 3/8″ Male NPT | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2H-6M-BRAS | 0.188 | 4.80 | 6mm Hy-Lok | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2H-8M-BRAS | 0.250 | 6.40 | 8mm Hy-Lok | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB2H-10M-BRAS | 0.250 | 6.40 | 10mm Hy-Lok | 14.00 | 37.40 | 0.77 | 1.47 | 0.480 | 0.550 | 3.150 | 80.00 | 32.00 | 19.60 | 6.40 | 1.260 | 0.250 | |
| HB3F-6N-BRAS | 0.406 | 10.30 | 3/8″ Female NPT | 19.50 | 44.20 | 1.02 | 1.74 | 0.700 | 0.770 | 4.000 | 101.60 | 38.10 | 26.00 | 9.70 | 1.500 | 0.380 | |
| HB3F-8N-BRAS | 0.406 | 10.30 | 1/2″ Female NPT | 19.50 | 44.20 | 1.02 | 1.74 | 0.700 | 0.770 | 4.000 | 101.60 | 38.10 | 26.00 | 9.70 | 1.500 | 0.380 | |
| HB3H-8T-BRAS | 0.406 | 10.30 | 1/2″ Hy-Lok | 19.50 | 44.20 | 1.02 | 1.74 | 0.700 | 0.770 | 4.000 | 101.60 | 38.10 | 26.00 | 9.70 | 1.500 | 0.380 | |
| HB3M-8N-BRAS | 0.406 | 10.30 | 1/2″ Male NPT | 19.50 | 44.20 | 1.02 | 1.74 | 0.700 | 0.770 | 4.000 | 101.60 | 38.10 | 26.00 | 9.70 | 1.500 | 0.380 | |
| HB3H-12T-BRAS | 0.406 | 10.30 | 3/4″ Hy-Lok | 19.50 | 44.20 | 1.02 | 1.74 | 0.700 | 0.770 | 4.000 | 101.60 | 38.10 | 26.00 | 9.70 | 1.500 | 0.380 | |
| HB3H-12M-BRAS | 0.375 | 9.50 | 12mm Hy-Lok | 19.50 | 44.20 | 1.02 | 1.74 | 0.700 | 0.770 | 4.000 | 101.60 | 38.10 | 26.00 | 9.70 | 1.500 | 0.380 | |
| HB3H-16M-BRAS | 0.406 | 10.30 | 16mm Hy-Lok | 19.50 | 44.20 | 1.02 | 1.74 | 0.700 | 0.770 | 4.000 | 101.60 | 38.10 | 26.00 | 9.70 | 1.500 | 0.380 | |
| HB1H-1T-S316 | 0.052 | 1.30 | 1/16″ Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1H-2T-S316 | 0.093 | 2.40 | 1/8″ Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1F-2N-S316 | 0.165 | 4.20 | 1/8″ Female NPT | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1M-2N-S316 | 0.165 | 4.20 | 1/8″ Male NPT | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1H-4T-S316 | 0.165 | 4.20 | 1/4″ Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1M-4N-S316 | 0.165 | 4.20 | 1/4″ Male | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 | |
| HB1H-3M-S316 | 0.086 | 2.20 | 3mm Hy-Lok | 10.00 | 23.20 | 0.64 | 0.91 | 0.330 | 0.390 | 1.850 | 47.00 | 18.00 | 16.30 | 3.30 | 0.710 | 0.130 |
