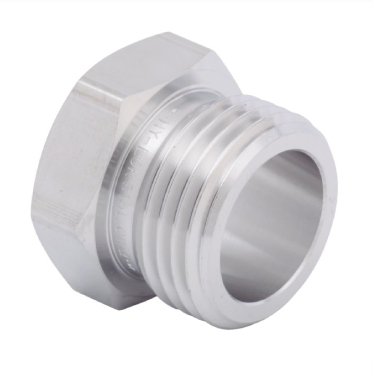

Male Nut

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
SKU N/A Category

Description

Product Dimension d (in) Dimension d (mm) Dimension H (in) Dimension L (in) Dimension L (mm) ZCR Size (in) PDF
H-ZMN-2 0.210 5.30 3/8 0.500 12.70 1/8 PDF
H-ZMN-4 0.360 9.15 5/8 0.710 18.00 1/4 PDF
H-ZMN-8 0.610 15.50 15/16 0.810 20.60 1/2 PDF
H-ZMN-12 0.890 22.60 1 5/16 1.000 25.40 3/4 PDF
H-ZMN-16 1.200 30.50 1 5/8 1.190 30.20 1 PDF
