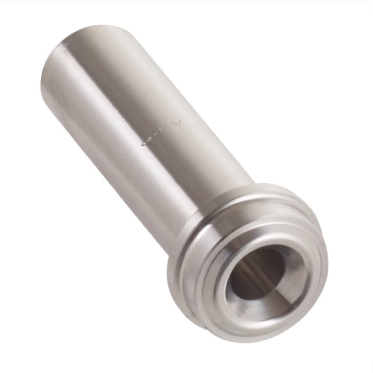

Short Tube Butt Weld Gland

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
Contact us
Find a distributor
SKU N/A Category

Description

Product Dimension C (in) Dimension C (mm) Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) Tube O.D. (mm) Wall Thickness (in) Wall Thickness (mm) ZCR Size (in) PDF
H-ZSG-2 0.75 19.05 0.060 1.50 1.080 27.40 1/8 0.028 1/8 PDF
H-ZSG-4 0.75 19.05 0.180 4.55 1.100 27.90 1/4 0.035 1/4 PDF
H-ZSG8-4 0.75 19.05 0.180 4.55 1.120 28.40 1/4 0.035 1/2 PDF
H-ZSG-6 0.75 19.05 0.300 7.67 1.120 28.40 3/8 0.035 1/2 PDF
H-ZSG-8 0.75 19.05 0.400 10.14 1.120 28.40 1/2 0.049 1/2 PDF
H-ZSG-6M 0.75 19.05 0.160 4.06 1.160 29.50 6 1.0 1/4 PDF
H-ZSG-8M 0.75 19.05 0.240 6.12 1.160 29.50 8 1.0 1/4 PDF
H-ZSG-10M 0.75 19.05 0.320 8.12 1.160 29.50 10 1.0 1/2 PDF
H-ZSG-12M 0.75 19.05 0.390 9.96 1.160 29.50 12 1.0 1/2 PDF
H-ZSG-18M 0.75 19.05 0.590 15.00 1.220 31.00 18 1.5 3/4 PDF
