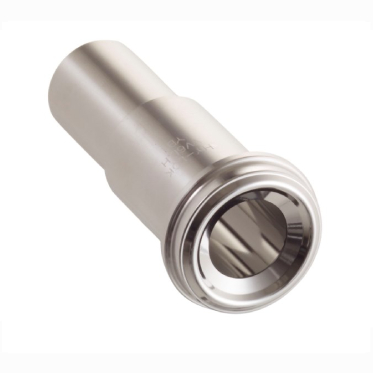

Male Weld Gland

Feature

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.Plating
  • Female Nut-The Internal surface of the nut is silver plated to avoid galling and reduce the tightenign torque.
  • Gasket options Include-Silver plated stainless steel 316L, Nickel plated, unplated nickel or special request.Testing
  • ZCR Fittings have been helium leak tested to a rale of 1 X 10-10atm/cc/sec with unplated, silver plated and copper gasket.
  • Optional tests are available upon request.
SKU N/A Category

Description

Product Dimension C (in) Dimension C (mm) Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Tube O.D. (in) ZCR Size (in) PDF
H-ZGM-2 0.28 7.10 0.060 1.50 0.700 17.80 1/8 1/8 PDF
H-ZGM4-2 0.28 7.10 0.060 1.50 1.310 33.30 1/8 1/4 PDF
H-ZGM-4 0.41 10.40 0.120 3.00 1.310 33.30 1/4 1/4 PDF
H-ZGM8-4 0.41 10.40 0.120 3.00 1.500 38.10 1/4 1/2 PDF
H-ZGM-6 0.41 10.40 0.280 7.10 1.500 38.10 3/8 1/2 PDF
H-ZGM-8 0.5 12.70 0.400 10.14 1.500 38.10 1/2 1/2 PDF
H-ZGM-12 0.62 15.70 0.530 13.50 2.000 50.80 3/4 3/4 PDF
H-ZGM-16 0.81 20.60 0.750 19.10 2.220 56.40 1 1 PDF
