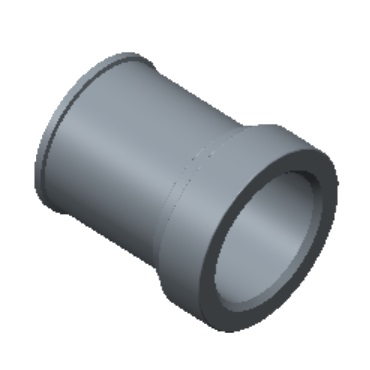

Automatic Tube Weld Gland

Zero clearance.
Vacuum to high pressure.
Wide temperature range up to 550ºF.
Easy installation and maintenance.
Safety leak test ports.

Adapt tubing to ZCO O-ring face seal.

SKU N/A Category Glands

Option

Clear

Description

Product	Dimension D (in)	Dimension D (mm)	Dimension d (in)	Dimension d (mm)	Dimension L (in)	Dimension L (mm)	Dimension L₁ (in)	Dimension L₁ (mm)	Dimension L₂ (in)	Dimension L₂ (mm)	Nominal Wall Thickness (in)	Size (in)	Tube O.D. (in)	Working Pressure (psig)	Working Pressure (bar)	PDF
H-ZCOTWG-4A-S316	0.290	7.37	0.180	4.57	1.120	28.45	0.750	19.05	0.020	0.51	0.035	1/4	1/4	5100	350	PDF
H-ZCOTWG-6A-S316	0.410	10.41	0.310	7.87	1.130	28.70	0.750	19.05	0.030	0.76	0.035	1/2	3/8	3300	220	PDF
H-ZCOTWG-8A-S316	0.550	13.97	0.400	10.16	1.140	28.96	0.750	19.05	0.040	1.02	0.049	1/2	1/2	3500	240	PDF
H-ZCOTWG-12A-S316	0.800	20.32	0.650	16.51	1.200	30.48	0.750	19.05	0.040	1.02	0.049	3/4	3/4	2100	150	PDF
H-ZCOTWG-16A-S316	1.060	26.92	0.870	22.10	1.410	35.81	0.960	24.38	0.040	1.02	0.065	1	1	2100	150	PDF
