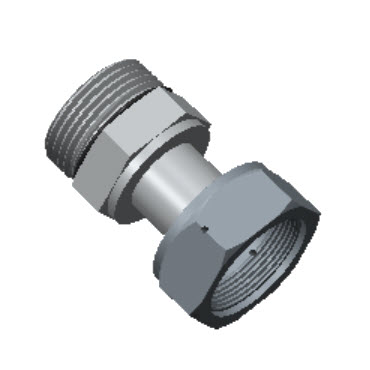

Swivel SAE/MS Connector

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Converts SAE/MS straight thread boss to ZCO O-ring face seal.
SKU N/A Category

Description

Product Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Dimension L₂ (in) Dimension L₂ (mm) Hex Flat H (in) Hex Flat H₁ (in) O-Ring Uniform Size Number Size (in) Straight Thread Working Pressure (psig) Working Pressure (bar) PDF
H-ZCOSSC4-4U-S316 0.180 4.57 1.540 39.12 0.360 9.14 0.770 19.56 9/16 11/16 904 1/4 7/16 – 20 4500 310 PDF
H-ZCOSSC8-6U-S316 0.400 10.16 1.640 41.66 0.390 9.91 0.810 20.57 11/16 1 906 1/2 9/16 – 18 4500 310 PDF
H-ZCOSSC8-8U-S316 0.400 10.16 1.710 43.43 0.440 11.18 0.810 20.57 7/8 1 908 1/2 3/4 – 16 4500 310 PDF
H-ZCOSSC12-12U-S316 0.620 15.75 2.070 52.58 0.590 14.99 0.940 23.88 1 1/4 1 1/2 912 3/4 1 1/16 – 12 3600 240 PDF
H-ZCOSSC16-16U-S316 0.870 22.10 2.170 55.12 0.590 14.99 0.980 24.89 1 1/2 1 3/4 916 1 1 5/16 – 12 2900 190 PDF
