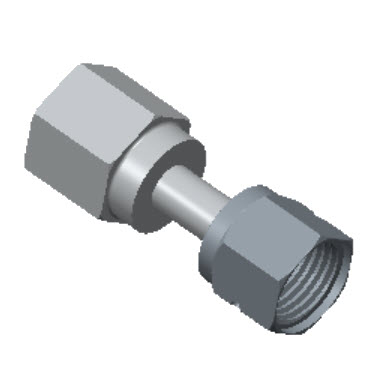

Swivel Female Connector

Zero clearance.
Vacuum to high pressure.
Wide temperature range up to 550ºF.
Easy installation and maintenance.
Safety leak test ports.

Converts male NPT thread to ZCO O-ring face seal.

SKU N/A Category Bodies

Option

Clear

Description

Product	Connection Type	Dimension d (in)	Dimension d (mm)	Dimension L (in)	Dimension L (mm)	Dimension L₁ (in)	Dimension L₁ (mm)	Hex Flat H (in)	Hex Flat H₁ (in)	Size (in)	Size P (in)	Working Pressure (psig)	Working Pressure (bar)	PDF
H-ZCOSFC4-4N-S316	Female NPT	0.180	4.57	1.570	39.88	0.720	18.29	3/4	11/16	1/4	1/4	6600	450	PDF
H-ZCOSFC8-6N-S316	Female NPT	0.400	10.16	1.730	43.94	0.840	21.34	7/8	1	1/2	3/8	5300	360	PDF
H-ZCOSFC8-8N-S316	Female NPT	0.400	10.16	1.960	49.78	0.820	20.83	1 1/16	1	1/2	1/2	4900	330	PDF
H-ZCOSFC12-12N-S316	Female NPT	0.620	15.75	2.120	53.85	0.940	23.88	1 5/16	1 1/2	3/4	3/4	4000	270	PDF
H-ZCOSFC16-16N-S316	Female NPT	0.870	22.10	2.290	58.17	0.980	24.89	1 5/8	1 3/4	1	1	3000	200	PDF
