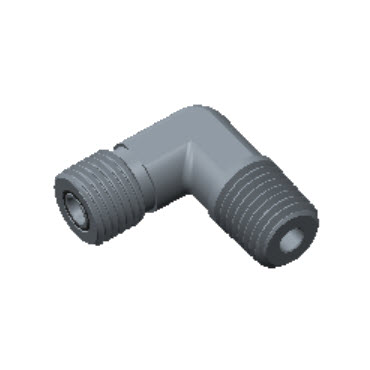

Male Elbow

  • Zero clearance.
  • Vacuum to high pressure.
  • Wide temperature range up to 550ºF.
  • Easy installation and maintenance.
  • Safety leak test ports.
  • Converts female NPT thread to ZCO gland.
SKU N/A Category

Description

Product Connection Type Dimension d (in) Dimension d (mm) Dimension L (in) Dimension L (mm) Dimension L₁ (in) Dimension L₁ (mm) Dimension L₂ (in) Dimension L₂ (mm) Size (in) Size P (in) Working Pressure (psig) Working Pressure (bar) Wrench Flat H (in) PDF
H-ZCOLM4-2N-S316 Male NPT 0.180 4.57 0.870 22.10 0.960 24.38 0.380 9.65 1/4 1/8 10000 680 1/2 PDF
H-ZCOLM4-4N-S316 Male NPT 0.180 4.57 1.050 26.67 0.960 24.38 0.560 14.22 1/4 1/4 8000 550 1/2 PDF
H-ZCOLM8-6N-S316 Male NPT 0.380 9.65 1.260 32.00 1.260 32.00 0.560 14.22 1/2 3/8 7800 530 13/16 PDF
H-ZCOLM8-8N-S316 Male NPT 0.400 10.16 1.450 36.83 1.260 32.00 0.750 19.05 1/2 1/2 7700 530 13/16 PDF
H-ZCOLM12-12N-S316 Male NPT 0.620 15.75 1.670 42.42 1.480 37.59 0.750 19.05 3/4 3/4 7300 500 1 1/4 PDF
H-ZCOLM16-16N-S316 Male NPT 0.870 22.10 1.940 49.28 1.560 39.62 0.940 23.88 1 1 5300 360 1 11/16 PDF
