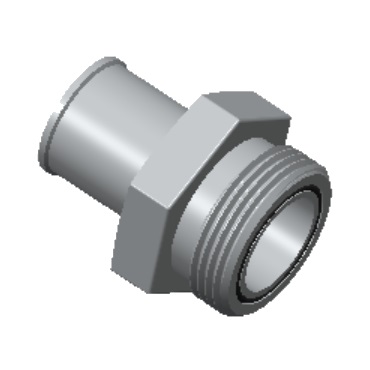

| Product | Dimension D (in) | Dimension D (mm) | Dimension d (in) | Dimension d (mm) | Dimension L (in) | Dimension L (mm) | Dimension L₁ (in) | Dimension L₁ (mm) | Dimension L₂ (in) | Dimension L₂ (mm) | Hex Flat H (in) | Nominal Wall Thickness (in) | Size (in) | Tube O.D. (in) | Working Pressure (psig) | Working Pressure (bar) | |
| H-ZCOTWC-4A-S316 | 0.290 | 7.37 | 0.180 | 4.57 | 1.590 | 40.39 | 0.750 | 19.05 | 0.020 | 0.51 | 5/8 | 0.035 | 1/4 | 1/4 | 5100 | 350 | |
| H-ZCOTWC-6A-S316 | 0.410 | 10.41 | 0.310 | 7.87 | 1.740 | 44.20 | 0.750 | 19.05 | 0.030 | 0.76 | 15/16 | 0.035 | 1/2 | 3/8 | 3300 | 220 | |
| H-ZCOTWC-8A-S316 | 0.550 | 13.97 | 0.400 | 10.16 | 1.750 | 44.45 | 0.750 | 19.05 | 0.040 | 1.02 | 15/16 | 0.049 | 1/2 | 1/2 | 3500 | 240 | |
| H-ZCOTWC-12A-S316 | 0.800 | 20.32 | 0.650 | 16.51 | 1.780 | 45.21 | 0.750 | 19.05 | 0.040 | 1.02 | 15/16 | 0.049 | 3/4 | 3/4 | 2200 | 150 | |
| H-ZCOTWC-16A-S316 | 1.060 | 26.92 | 0.870 | 22.01 | 2.030 | 51.56 | 0.960 | 24.38 | 0.040 | 1.02 | 1 5/8 | 0.065 | 1 | 1 | 2200 | 150 |
