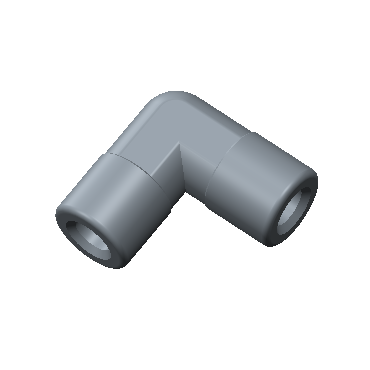

Union Elbow (H-SWLA)

SKU N/A Category

Description

Product Dimension D (mm) Dimension d (mm) Dimension E (mm) Dimension H (mm) Dimension L (mm) Tube O.D. (in) Working Pressure (psig) Working Pressure (bar) PDF
H-SWLA-4T-BRAS 13.40 4.60 7.10 11.10 21.80 1/4 11300 778 PDF
H-SWLA-6T-BRAS 15.80 7.10 7.90 12.70 26.40 3/8 8400 578 PDF
H-SWLA-8T-BRAS 20.60 10.20 9.70 17.40 29.70 1/2 7800 537 PDF
H-SWLA-10T-BRAS 23.80 12.70 10.40 20.60 36.10 5/8 6700 461 PDF
H-SWLA-12T-BRAS 28.60 15.70 11.20 25.40 37.00 3/4 6700 461 PDF
H-SWLA-16T-BRAS 35.00 22.10 15.70 31.80 46.50 1 6100 420 PDF
H-SWLA-4T-STEL 13.40 4.60 7.10 11.10 21.80 1/4 11300 778 PDF
H-SWLA-6T-STEL 15.80 7.10 7.90 12.70 26.40 3/8 8400 578 PDF
H-SWLA-8T-STEL 20.60 10.20 9.70 17.40 29.70 1/2 7800 537 PDF
H-SWLA-10T-STEL 23.80 12.70 10.40 20.60 36.10 5/8 6700 461 PDF
H-SWLA-12T-STEL 28.60 15.70 11.20 25.40 37.00 3/4 6700 461 PDF
H-SWLA-16T-STEL 35.00 22.10 15.70 31.80 46.50 1 6100 420 PDF
H-SWLA-4T-S316 13.40 4.60 7.10 11.10 21.80 1/4 11300 778 PDF
H-SWLA-6T-S316 15.80 7.10 7.90 12.70 26.40 3/8 8400 578 PDF
H-SWLA-8T-S316 20.60 10.20 9.70 17.40 29.70 1/2 7800 537 PDF
H-SWLA-10T-S316 23.80 12.70 10.40 20.60 36.10 5/8 6700 461 PDF
H-SWLA-12T-S316 28.60 15.70 11.20 25.40 37.00 3/4 6700 461 PDF
H-SWLA-16T-S316 35.00 22.10 15.70 31.80 46.50 1 6100 420 PDF
