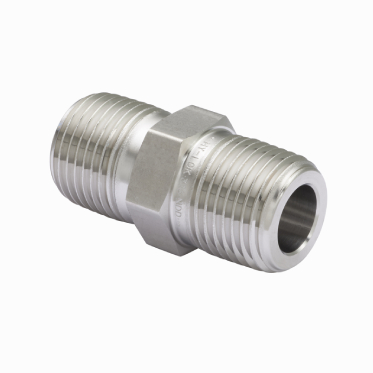

Hex Nipple (Male NPT to ISO tapered)

  • Precision pipe fittings for instrumentation and process control
  • Fine threads constructed to ensure leak-free & reliable systems
  • Male threads are protected with plastic cap
  • Various materials including SS316, Brass and Carbon steel
  • Many choice of connections and configurations are available
  • Male NPT to ISO tapered
Contact us
Find a distributor
SKU N/A Category

Description

Product Dimension A (mm) Dimension E (mm) Dimension H (Hex) (mm) NPT Thread Size (in) Thread Size BSP/ISO (in) PDF
H-SNA-2NR-BRAS 24.6 4.10 11.10 1/8 1/8-28 (7/1) PDF
H-SNA-4NR-BRAS 35.6 6.40 14.20 1/4 1/4-19 (7/1) PDF
H-SNA-6NR-BRAS 36.3 9.70 17.40 3/8 3/8-19 (7/1) PDF
H-SNA-8NR-BRAS 46.0 11.90 22.20 1/2 1/2-14 (7/1) PDF
H-SNA-12NR-BRAS 46.7 15.70 26.90 3/4 3/4-14 (7/1) PDF
H-SNA-16NR-BRAS 58.9 22.40 34.90 1 1-11 (7/1) PDF
H-SNA-2NR-STEL 24.6 4.10 11.10 1/8 1/8-28 (7/1) PDF
H-SNA-4NR-STEL 35.6 6.40 14.20 1/4 1/4-19 (7/1) PDF
H-SNA-6NR-STEL 36.3 9.70 17.40 3/8 3/8-19 (7/1) PDF
H-SNA-8NR-STEL 46.0 11.90 22.20 1/2 1/2-14 (7/1) PDF
H-SNA-12NR-STEL 46.7 15.70 26.90 3/4 3/4-14 (7/1) PDF
H-SNA-16NR-STEL 58.9 22.40 34.90 1 1-11 (7/1) PDF
H-SNA-2NR-S316 24.6 4.10 11.10 1/8 1/8-28 (7/1) PDF
H-SNA-4NR-S316 35.6 6.40 14.20 1/4 1/4-19 (7/1) PDF
H-SNA-6NR-S316 36.3 9.70 17.40 3/8 3/8-19 (7/1) PDF
H-SNA-8NR-S316 46.0 11.90 22.20 1/2 1/2-14 (7/1) PDF
H-SNA-12NR-S316 46.7 15.70 26.90 3/4 3/4-14 (7/1) PDF
H-SNA-16NR-S316 58.9 22.40 34.90 1 1-11 (7/1) PDF
