Male Branch Tee - Hy-Lok

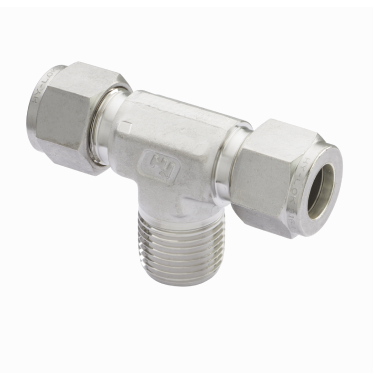

Male Branch Tee

SKU N/A Category

Description

Product Type Material Tube O.D. (in) Tube O.D. (mm) PDF
CBTM2-2N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 1/8 3.17 PDF
CBTM2-4N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 1/8 3.17 PDF
CBTM3-2N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 3/16 4.76 PDF
CBTM4-2N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 1/4 6.35 PDF
CBTM4-4N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 1/4 6.35 PDF
CBTM5-2N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 5/16 7.93 PDF
CBTM6-4N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 3/8 9.52 PDF
CBTM6-6N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 3/8 9.52 PDF
CBTM8-6N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 1/2 12.7 PDF
CBTM8-8N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 1/2 12.7 PDF
CBTM10-8N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 5/8 15.87 PDF
CBTM12-12N-STEL Connects Fractional Tube to Female NPT Thread Carbon Steel 3/4 19.05 PDF
CBTM3M-2R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 3 PDF
CBTM3M-4R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 3 PDF
CBTM4M-2R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 4 PDF
CBTM6M-2R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 6 PDF
CBTM6M-4R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 6 PDF
CBTM8M-2R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 8 PDF
CBTM8M-4R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 8 PDF
CBTM10M-4R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 10 PDF
CBTM10M-6R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 10 PDF
CBTM12M-4R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 12 PDF
CBTM12M-6R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 12 PDF
CBTM12M-8R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 12 PDF
CBTM16M-6R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 16 PDF
CBTM16M-8R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 16 PDF
CBTM20M-12R-STEL Connects Metric Tube to Female ISO Tapered Thread Carbon Steel 20 PDF
CBTM2-2N-BRAS Connects Fractional Tube to Female NPT Thread Brass 1/8 3.17 PDF
CBTM2-4N-BRAS Connects Fractional Tube to Female NPT Thread Brass 1/8 3.17 PDF
CBTM3-2N-BRAS Connects Fractional Tube to Female NPT Thread Brass 3/16 4.76 PDF
CBTM4-2N-BRAS Connects Fractional Tube to Female NPT Thread Brass 1/4 6.35 PDF
CBTM4-4N-BRAS Connects Fractional Tube to Female NPT Thread Brass 1/4 6.35 PDF
CBTM5-2N-BRAS Connects Fractional Tube to Female NPT Thread Brass 5/16 7.93 PDF
CBTM6-4N-BRAS Connects Fractional Tube to Female NPT Thread Brass 3/8 9.52 PDF
CBTM6-6N-BRAS Connects Fractional Tube to Female NPT Thread Brass 3/8 9.52 PDF
CBTM8-6N-BRAS Connects Fractional Tube to Female NPT Thread Brass 1/2 12.7 PDF
CBTM8-8N-BRAS Connects Fractional Tube to Female NPT Thread Brass 1/2 12.7 PDF
CBTM10-8N-BRAS Connects Fractional Tube to Female NPT Thread Brass 5/8 15.87 PDF
CBTM12-12N-BRAS Connects Fractional Tube to Female NPT Thread Brass 3/4 19.05 PDF
CBTM3M-2R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 3 PDF
CBTM3M-4R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 3 PDF
CBTM4M-2R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 4 PDF
CBTM6M-2R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 6 PDF
CBTM6M-4R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 6 PDF
CBTM8M-2R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 8 PDF
CBTM8M-4R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 8 PDF
CBTM10M-4R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 10 PDF
CBTM10M-6R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 10 PDF
CBTM12M-4R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 12 PDF
CBTM12M-6R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 12 PDF
CBTM12M-8R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 12 PDF
CBTM16M-6R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 16 PDF
CBTM16M-8R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 16 PDF
CBTM20M-12R-BRAS Connects Metric Tube to Female ISO Tapered Thread Brass 20 PDF
CBTM2-2N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 1/8 3.17 PDF
CBTM2-4N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 1/8 3.17 PDF
CBTM3-2N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 3/16 4.76 PDF
CBTM4-2N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 1/4 6.35 PDF
CBTM4-4N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 1/4 6.35 PDF
CBTM5-2N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 5/16 7.93 PDF
CBTM6-4N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 3/8 9.52 PDF
CBTM6-6N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 3/8 9.52 PDF
CBTM8-6N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 1/2 12.7 PDF
CBTM8-8N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 1/2 12.7 PDF
CBTM10-8N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 5/8 15.87 PDF
CBTM12-12N-S316 Connects Fractional Tube to Female NPT Thread Stainless Steel 316 3/4 19.05 PDF
CBTM3M-2R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 3 PDF
CBTM3M-4R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 3 PDF
CBTM4M-2R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 4 PDF
CBTM6M-2R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 6 PDF
CBTM6M-4R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 6 PDF
CBTM8M-2R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 8 PDF
CBTM8M-4R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 8 PDF
CBTM10M-4R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 10 PDF
CBTM10M-6R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 10 PDF
CBTM12M-4R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 12 PDF
CBTM12M-6R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 12 PDF
CBTM12M-8R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 12 PDF
CBTM16M-6R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 16 PDF
CBTM16M-8R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 16 PDF
CBTM20M-12R-S316 Connects Metric Tube to Female ISO Tapered Thread Stainless Steel 316 20 PDF
