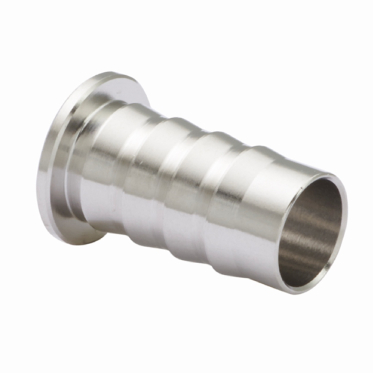

Hy-Lok Tube Inserts are used to secure the nylon or other soft plastic tubing to Hy-Lok tube fittings. For right choice of Hy-Lok lube inserts, check if O.D. and I.D. of the tubing are the same as dimension D and D1 of tube inserts, respectively.
| Product | Type | Material | Tube O.D. (in) | Tube O.D. (mm) | Tube O.D. (D₁) (in) | Tube O.D. (D₁) (mm) | |
| CI3-2-S316 | Fractional | Stainless Steel 316 | 3/16 | 4.76 | 1/8 | 3.17 | |
| CI4-2-S316 | Fractional | Stainless Steel 316 | 1/4 | 6.35 | 1/8 | 3.17 | |
| CI4-3-S316 | Fractional | Stainless Steel 316 | 1/4 | 6.35 | 3/16 | 4.76 | |
| CI5-2-S316 | Fractional | Stainless Steel 316 | 5/16 | 7.93 | 1/8 | 3.17 | |
| CI5-3-S316 | Fractional | Stainless Steel 316 | 5/16 | 7.93 | 3/16 | 4.76 | |
| CI5-4-S316 | Fractional | Stainless Steel 316 | 5/16 | 7.93 | 1/4 | 6.35 | |
| CI6-3-S316 | Fractional | Stainless Steel 316 | 3/8 | 9.52 | 3/16 | 4.76 | |
| CI6-4-S316 | Fractional | Stainless Steel 316 | 3/8 | 9.52 | 1/4 | 8.35 | |
| CI8-4-S316 | Fractional | Stainless Steel 316 | 1/2 | 12.7 | 1/4 | 6.35 | |
| CI8-6-S316 | Fractional | Stainless Steel 316 | 1/2 | 12.7 | 3/8 | 9.52 | |
| CI10-6-S316 | Fractional | Stainless Steel 316 | 5/8 | 15.67 | 3/8 | 9.52 | |
| CI10-8-S316 | Fractional | Stainless Steel 316 | 5/8 | 15.87 | 1/2 | 12.70 | |
| CI12-8-S316 | Fractional | Stainless Steel 316 | 3/4 | 19.05 | 1/2 | 12.70 | |
| CI12-10-S316 | Fractional | Stainless Steel 316 | 3/4 | 19.05 | 5/8 | 15.87 | |
| CI16-12-S316 | Fractional | Stainless Steel 316 | 1 | 25.4 | 3/4 | 19.05 | |
| CI6M-4M-S316 | Metric | Stainless Steel 316 | 6 | 4.00 | |||
| CI8M-6M-S316 | Metric | Stainless Steel 316 | 8 | 6.00 | |||
| CI10M-8M-S316 | Metric | Stainless Steel 316 | 10 | 8.00 | |||
| CI12M-8M-S316 | Metric | Stainless Steel 316 | 12 | 8.00 | |||
| CI12M-10M-S316 | Metric | Stainless Steel 316 | 12 | 10.00 | |||
| CI3-2-STEL | Fractional | Carbon Steel | 3/16 | 4.76 | 1/8 | 3.17 | |
| CI4-2-STEL | Fractional | Carbon Steel | 1/4 | 6.35 | 1/8 | 3.17 | |
| CI4-3-STEL | Fractional | Carbon Steel | 1/4 | 6.35 | 3/16 | 4.76 | |
| CI5-2-STEL | Fractional | Carbon Steel | 5/16 | 7.93 | 1/8 | 3.17 | |
| CI5-3-STEL | Fractional | Carbon Steel | 5/16 | 7.93 | 3/16 | 4.76 | |
| CI5-4-STEL | Fractional | Carbon Steel | 5/16 | 7.93 | 1/4 | 6.35 | |
| CI6-3-STEL | Fractional | Carbon Steel | 3/8 | 9.52 | 3/16 | 4.76 | |
| CI6-4-STEL | Fractional | Carbon Steel | 3/8 | 9.52 | 1/4 | 8.35 | |
| CI8-4-STEL | Fractional | Carbon Steel | 1/2 | 12.7 | 1/4 | 6.35 | |
| CI8-6-STEL | Fractional | Carbon Steel | 1/2 | 12.7 | 3/8 | 9.52 | |
| CI10-6-STEL | Fractional | Carbon Steel | 5/8 | 15.67 | 3/8 | 9.52 | |
| CI10-8-STEL | Fractional | Carbon Steel | 5/8 | 15.87 | 1/2 | 12.70 | |
| CI12-8-STEL | Fractional | Carbon Steel | 3/4 | 19.05 | 1/2 | 12.70 | |
| CI12-10-STEL | Fractional | Carbon Steel | 3/4 | 19.05 | 5/8 | 15.87 | |
| CI16-12-STEL | Fractional | Carbon Steel | 1 | 25.4 | 3/4 | 19.05 | |
| CI6M-4M-STEL | Metric | Carbon Steel | 6 | 4.00 | |||
| CI8M-6M-STEL | Metric | Carbon Steel | 8 | 6.00 | |||
| CI10M-8M-STEL | Metric | Carbon Steel | 10 | 8.00 | |||
| CI12M-8M-STEL | Metric | Carbon Steel | 12 | 8.00 | |||
| CI12M-10M-STEL | Metric | Carbon Steel | 12 | 10.00 | |||
| CI3-2-BRAS | Fractional | Brass | 3/16 | 4.76 | 1/8 | 3.17 | |
| CI4-2-BRAS | Fractional | Brass | 1/4 | 6.35 | 1/8 | 3.17 | |
| CI4-3-BRAS | Fractional | Brass | 1/4 | 6.35 | 3/16 | 4.76 | |
| CI5-2-BRAS | Fractional | Brass | 5/16 | 7.93 | 1/8 | 3.17 | |
| CI5-3-BRAS | Fractional | Brass | 5/16 | 7.93 | 3/16 | 4.76 | |
| CI5-4-BRAS | Fractional | Brass | 5/16 | 7.93 | 1/4 | 6.35 | |
| CI6-3-BRAS | Fractional | Brass | 3/8 | 9.52 | 3/16 | 4.76 | |
| CI6-4-BRAS | Fractional | Brass | 3/8 | 9.52 | 1/4 | 8.35 | |
| CI8-4-BRAS | Fractional | Brass | 1/2 | 12.7 | 1/4 | 6.35 | |
| CI8-6-BRAS | Fractional | Brass | 1/2 | 12.7 | 3/8 | 9.52 | |
| CI10-6-BRAS | Fractional | Brass | 5/8 | 15.67 | 3/8 | 9.52 | |
| CI10-8-BRAS | Fractional | Brass | 5/8 | 15.87 | 1/2 | 12.70 | |
| CI12-8-BRAS | Fractional | Brass | 3/4 | 19.05 | 1/2 | 12.70 | |
| CI12-10-BRAS | Fractional | Brass | 3/4 | 19.05 | 5/8 | 15.87 | |
| CI16-12-BRAS | Fractional | Brass | 1 | 25.4 | 3/4 | 19.05 | |
| CI6M-4M-BRAS | Metric | Brass | 6 | 4.00 | |||
| CI8M-6M-BRAS | Metric | Brass | 8 | 6.00 | |||
| CI10M-8M-BRAS | Metric | Brass | 10 | 8.00 | |||
| CI12M-8M-BRAS | Metric | Brass | 12 | 8.00 | |||
| CI12M-10M-BRAS | Metric | Brass | 12 | 10.00 |
