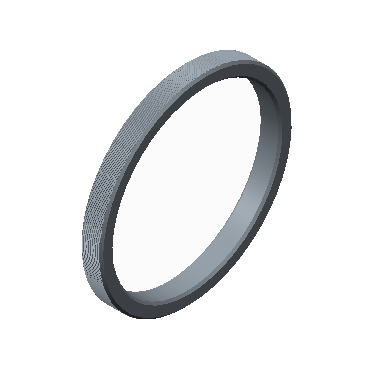

Hy-Lok Sure Ring Is especially useful when you Install Hy-Lok fittings in a small space such as in a cabinet where it is practically impossible to apply the standard installation procedures. (i.e., 1 1/4 turns or 3/4 turns from finger tight) It ensures sufficient tightening and protects over-tightening, For installation, insert Sure Ring between the nut and the body before assembly, and then tighten the nut until being blocked by the sure ring.
| Product | Type | Material | Tube O.D. (in) | Tube O.D. (mm) | |
| CCL-2-S316 | Fractional | Stainless Steel 316 | 1/8 | 3.17 | |
| CCL-4-S316 | Fractional | Stainless Steel 316 | 1/4 | 6.35 | |
| CCL-6-S316 | Fractional | Stainless Steel 316 | 3/8 | 9.52 | |
| CCL-8-S316 | Fractional | Stainless Steel 316 | 1/2 | 12.7 | |
| CCL-12-S316 | Fractional | Stainless Steel 316 | 3/4 | 19.05 | |
| CCL-16-S316 | Fractional | Stainless Steel 316 | 1 | 25.4 | |
| CCL-3M-S316 | Metric | Stainless Steel 316 | 3 | ||
| CCL-6M-S316 | Metric | Stainless Steel 316 | 6 | ||
| CCL-10M-S316 | Metric | Stainless Steel 316 | 10 | ||
| CCL-12M-S316 | Metric | Stainless Steel 316 | 12 | ||
| CCL-18M-S316 | Metric | Stainless Steel 316 | 18 | ||
| CCL-20M-S316 | Metric | Stainless Steel 316 | 20 | ||
| CCL-25M-S316 | Metric | Stainless Steel 316 | 25 | ||
| CCL-2-STEL | Fractional | Carbon Steel | 1/8 | 3.17 | |
| CCL-4-STEL | Fractional | Carbon Steel | 1/4 | 6.35 | |
| CCL-6-STEL | Fractional | Carbon Steel | 3/8 | 9.52 | |
| CCL-8-STEL | Fractional | Carbon Steel | 1/2 | 12.7 | |
| CCL-12-STEL | Fractional | Carbon Steel | 3/4 | 19.05 | |
| CCL-16-STEL | Fractional | Carbon Steel | 1 | 25.4 | |
| CCL-3M-STEL | Metric | Carbon Steel | 3 | ||
| CCL-6M-STEL | Metric | Carbon Steel | 6 | ||
| CCL-10M-STEL | Metric | Carbon Steel | 10 | ||
| CCL-12M-STEL | Metric | Carbon Steel | 12 | ||
| CCL-18M-STEL | Metric | Carbon Steel | 18 | ||
| CCL-20M-STEL | Metric | Carbon Steel | 20 | ||
| CCL-25M-STEL | Metric | Carbon Steel | 25 | ||
| CCL-2-BRAS | Fractional | Brass | 1/8 | 3.17 | |
| CCL-4-BRAS | Fractional | Brass | 1/4 | 6.35 | |
| CCL-6-BRAS | Fractional | Brass | 3/8 | 9.52 | |
| CCL-8-BRAS | Fractional | Brass | 1/2 | 12.7 | |
| CCL-12-BRAS | Fractional | Brass | 3/4 | 19.05 | |
| CCL-16-BRAS | Fractional | Brass | 1 | 25.4 | |
| CCL-3M-BRAS | Metric | Brass | 3 | ||
| CCL-6M-BRAS | Metric | Brass | 6 | ||
| CCL-10M-BRAS | Metric | Brass | 10 | ||
| CCL-12M-BRAS | Metric | Brass | 12 | ||
| CCL-18M-BRAS | Metric | Brass | 18 | ||
| CCL-20M-BRAS | Metric | Brass | 20 | ||
| CCL-25M-BRAS | Metric | Brass | 25 |
