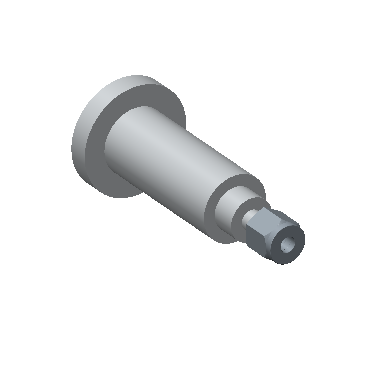

Lapped Flange Connector

Hy-Lok Lapped flange connector provides safe and easy connections between process lines and instruments. It provides Hy-Lok tube connection ends by a lap joint pipe flange to ANSI B 16.5 or BS 1560. Both “smooth” and “serrated” surface finishes are available. For identification of serrated surface finish, groove is provided.

SKU N/A Category

Description

Product Type Material Tube O.D. (in) Tube O.D. (mm) PDF
CFTC4-SM-S316 Stainless Steel 316 PDF
CFTC4-SE-S316 Stainless Steel 316 PDF
CFTC6-SM-S316 Stainless Steel 316 PDF
CFTC6-SE-S316 Stainless Steel 316 PDF
CFTC8-SM-S316 Stainless Steel 316 PDF
CFTC8-SE-S316 Stainless Steel 316 PDF
CFTC4-SM-STEL Carbon Steel PDF
CFTC4-SE-STEL Carbon Steel PDF
CFTC6-SM-STEL Carbon Steel PDF
CFTC6-SE-STEL Carbon Steel PDF
CFTC8-SM-STEL Carbon Steel PDF
CFTC8-SE-STEL Carbon Steel PDF
CFTC4-SM-BRAS Brass PDF
CFTC4-SE-BRAS Brass PDF
CFTC6-SM-BRAS Brass PDF
CFTC6-SE-BRAS Brass PDF
CFTC8-SM-BRAS Brass PDF
CFTC8-SE-BRAS Brass PDF
