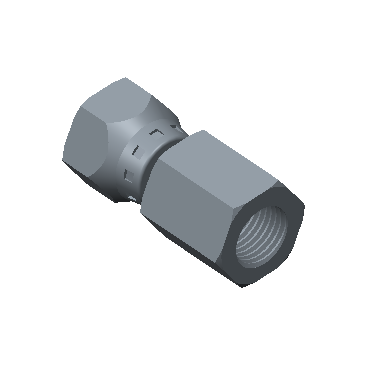

| Product | Dimension D (mm) | Dimension H (Hex) (mm) | Dimension h (Hex) (mm) | Dimension L (mm) | Dimension L1 (mm) | Material | T (NPT) (in) | Tube O.D. (in) | Tube O.D. (mm) | Unified National Fine Thread (U) | |
| FSFFC4T-01N-S316 | 4.40 | 14.20 | 14.20 | 32.10 | 23.40 | Stainless Steel 316 | 1/8 | 1/4 | 6 | 7/16″-20 | |
| FSFFC-6T-02N-S316 | 7.50 | 17.40 | 19.10 | 36.40 | 26.90 | Stainless Steel 316 | 1/4 | 3/8 | 10 | 9/16″-18 | |
| FSFFC-8T-03N-S316 | 9.90 | 22.20 | 22.20 | 40.70 | 31.20 | Stainless Steel 316 | 3/8 | 1/2 | 12 | 3/4″-16 | |
| FSFFC10T-04N-S316 | 12.30 | 25.40 | 28.50 | 48.00 | 37.30 | Stainless Steel 316 | 1/2 | 5/8 | 16 | 7/8″-14 | |
| FSFFC12T-06N-S316 | 15.50 | 31.70 | 34.90 | 51.10 | 38.40 | Stainless Steel 316 | 3/4 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFFC16T-08N-S316 | 21.50 | 38.10 | 41.20 | 62.10 | 47.00 | Stainless Steel 316 | 1 | 1 | 25 | 1 5/16″-12 | |
| FSFFC20T-10N-S316 | 27.50 | 50.00 | 50.00 | 71.00 | 55.10 | Stainless Steel 316 | 1 1/4 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFFC24T-12N-S316 | 33.30 | 60.00 | 60.00 | 76.00 | 57.40 | Stainless Steel 316 | 1 1/2 | 1-1/2 | 38 | 1 7/8″-12 | |
| FSFFC32T-16N-S316 | 45.00 | 75.00 | 75.00 | 86.00 | 62.20 | Stainless Steel 316 | 2 | 2 | 50 | 2 1/2″-12 | |
| FSFFC4T-01N-BRAS | 4.40 | 14.20 | 14.20 | 32.10 | 23.40 | Brass | 1/8 | 1/4 | 6 | 7/16″-20 | |
| FSFFC-6T-02N-BRAS | 7.50 | 17.40 | 19.10 | 36.40 | 26.90 | Brass | 1/4 | 3/8 | 10 | 9/16″-18 | |
| FSFFC-8T-03N-BRAS | 9.90 | 22.20 | 22.20 | 40.70 | 31.20 | Brass | 3/8 | 1/2 | 12 | 3/4″-16 | |
| FSFFC10T-04N-BRAS | 12.30 | 25.40 | 28.50 | 48.00 | 37.30 | Brass | 1/2 | 5/8 | 16 | 7/8″-14 | |
| FSFFC12T-06N-BRAS | 15.50 | 31.70 | 34.90 | 51.10 | 38.40 | Brass | 3/4 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFFC16T-08N-BRAS | 21.50 | 38.10 | 41.20 | 62.10 | 47.00 | Brass | 1 | 1 | 25 | 1 5/16″-12 | |
| FSFFC20T-10N-BRAS | 27.50 | 50.00 | 50.00 | 71.00 | 55.10 | Brass | 1 1/4 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFFC24T-12N-BRAS | 33.30 | 60.00 | 60.00 | 76.00 | 57.40 | Brass | 1 1/2 | 1-1/2 | 38 | 1 7/8″-12 | |
| FSFFC32T-16N-BRAS | 45.00 | 75.00 | 75.00 | 86.00 | 62.20 | Brass | 2 | 2 | 50 | 2 1/2″-12 | |
| FSFFC4T-01N-STEL | 4.40 | 14.20 | 14.20 | 32.10 | 23.40 | Carbon Steel | 1/8 | 1/4 | 6 | 7/16″-20 | |
| FSFFC-6T-02N-STEL | 7.50 | 17.40 | 19.10 | 36.40 | 26.90 | Carbon Steel | 1/4 | 3/8 | 10 | 9/16″-18 | |
| FSFFC-8T-03N-STEL | 9.90 | 22.20 | 22.20 | 40.70 | 31.20 | Carbon Steel | 3/8 | 1/2 | 12 | 3/4″-16 | |
| FSFFC10T-04N-STEL | 12.30 | 25.40 | 28.50 | 48.00 | 37.30 | Carbon Steel | 1/2 | 5/8 | 16 | 7/8″-14 | |
| FSFFC12T-06N-STEL | 15.50 | 31.70 | 34.90 | 51.10 | 38.40 | Carbon Steel | 3/4 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFFC16T-08N-STEL | 21.50 | 38.10 | 41.20 | 62.10 | 47.00 | Carbon Steel | 1 | 1 | 25 | 1 5/16″-12 | |
| FSFFC20T-10N-STEL | 27.50 | 50.00 | 50.00 | 71.00 | 55.10 | Carbon Steel | 1 1/4 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFFC24T-12N-STEL | 33.30 | 60.00 | 60.00 | 76.00 | 57.40 | Carbon Steel | 1 1/2 | 1-1/2 | 38 | 1 7/8″-12 | |
| FSFFC32T-16N-STEL | 45.00 | 75.00 | 75.00 | 86.00 | 62.20 | Carbon Steel | 2 | 2 | 50 | 2 1/2″-12 |
