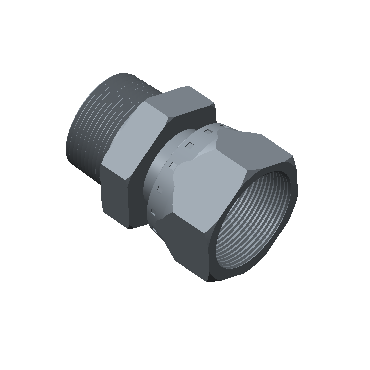

| Product | Dimension D (mm) | Dimension H (Hex) (mm) | Dimension h (Hex) (mm) | Dimension L (mm) | Dimension L1 (mm) | Material | T (NPT) (in) | Tube O.D. (in) | Tube O.D. (mm) | Unified National Fine Thread (U) | |
| FSFMC4T-01N-S316 | 4.40 | 14.20 | 14.20 | 28.70 | 20.00 | Stainless Steel 316 | 1/8 | 1/4 | 6 | 7/16″-20 | |
| FSFMC6T-02N-S316 | 7.50 | 17.40 | 17.40 | 40.40 | 30.90 | Stainless Steel 316 | 1/4 | 3/8 | 10 | 9/16″-18 | |
| FSFMC8T-03N-S316 | 9.90 | 22.20 | 22.20 | 42.90 | 32.20 | Stainless Steel 316 | 3/8 | 1/2 | 12 | 3/4″-16 | |
| FSFMC10T-04N-S316 | 12.30 | 25.40 | 25.40 | 52.10 | 39.40 | Stainless Steel 316 | 1/2 | 5/8 | 16 | 7/8″-14 | |
| FSFMC12T-06N-S316 | 15.50 | 31.70 | 31.70 | 54.60 | 40.30 | Stainless Steel 316 | 3/4 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFMC16T-08N-S316 | 21.50 | 38.10 | 38.10 | 63.50 | 48.40 | Stainless Steel 316 | 1 | 1 | 25 | 1 5/16″-12 | |
| FSFMC20T-10N-S316 | 37.50 | 50.00 | 50.80 | 70.10 | 54.20 | Stainless Steel 316 | 1 1/4 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFMC24T-12N-S316 | 33.00 | 57.10 | 57.10 | 77.50 | 58.90 | Stainless Steel 316 | 1 1/2 | 1-1/2 | 38 | 1 7/8″-12 | |
| FSFMC32T-16N-S316 | 45.00 | 75.00 | 66.70 | 85.90 | 62.10 | Stainless Steel 316 | 2 | 2 | 50 | 2 1/2″-12 | |
| FSFMC4T-01N-BRAS | 4.40 | 14.20 | 14.20 | 28.70 | 20.00 | Brass | 1/8 | 1/4 | 6 | 7/16″-20 | |
| FSFMC6T-02N-BRAS | 7.50 | 17.40 | 17.40 | 40.40 | 30.90 | Brass | 1/4 | 3/8 | 10 | 9/16″-18 | |
| FSFMC8T-03N-BRAS | 9.90 | 22.20 | 22.20 | 42.90 | 32.20 | Brass | 3/8 | 1/2 | 12 | 3/4″-16 | |
| FSFMC10T-04N-BRAS | 12.30 | 25.40 | 25.40 | 52.10 | 39.40 | Brass | 1/2 | 5/8 | 16 | 7/8″-14 | |
| FSFMC12T-06N-BRAS | 15.50 | 31.70 | 31.70 | 54.60 | 40.30 | Brass | 3/4 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFMC16T-08N-BRAS | 21.50 | 38.10 | 38.10 | 63.50 | 48.40 | Brass | 1 | 1 | 25 | 1 5/16″-12 | |
| FSFMC20T-10N-BRAS | 37.50 | 50.00 | 50.80 | 70.10 | 54.20 | Brass | 1 1/4 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFMC24T-12N-BRAS | 33.00 | 57.10 | 57.10 | 77.50 | 58.90 | Brass | 1 1/2 | 1-1/2 | 38 | 1 7/8″-12 | |
| FSFMC32T-16N-BRAS | 45.00 | 75.00 | 66.70 | 85.90 | 62.10 | Brass | 2 | 2 | 50 | 2 1/2″-12 | |
| FSFMC4T-01N-STEL | 4.40 | 14.20 | 14.20 | 28.70 | 20.00 | Carbon Steel | 1/8 | 1/4 | 6 | 7/16″-20 | |
| FSFMC6T-02N-STEL | 7.50 | 17.40 | 17.40 | 40.40 | 30.90 | Carbon Steel | 1/4 | 3/8 | 10 | 9/16″-18 | |
| FSFMC8T-03N-STEL | 9.90 | 22.20 | 22.20 | 42.90 | 32.20 | Carbon Steel | 3/8 | 1/2 | 12 | 3/4″-16 | |
| FSFMC10T-04N-STEL | 12.30 | 25.40 | 25.40 | 52.10 | 39.40 | Carbon Steel | 1/2 | 5/8 | 16 | 7/8″-14 | |
| FSFMC12T-06N-STEL | 15.50 | 31.70 | 31.70 | 54.60 | 40.30 | Carbon Steel | 3/4 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFMC16T-08N-STEL | 21.50 | 38.10 | 38.10 | 63.50 | 48.40 | Carbon Steel | 1 | 1 | 25 | 1 5/16″-12 | |
| FSFMC20T-10N-STEL | 37.50 | 50.00 | 50.80 | 70.10 | 54.20 | Carbon Steel | 1 1/4 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFMC24T-12N-STEL | 33.00 | 57.10 | 57.10 | 77.50 | 58.90 | Carbon Steel | 1 1/2 | 1-1/2 | 38 | 1 7/8″-12 | |
| FSFMC32T-16N-STEL | 45.00 | 75.00 | 66.70 | 85.90 | 62.10 | Carbon Steel | 2 | 2 | 50 | 2 1/2″-12 |
