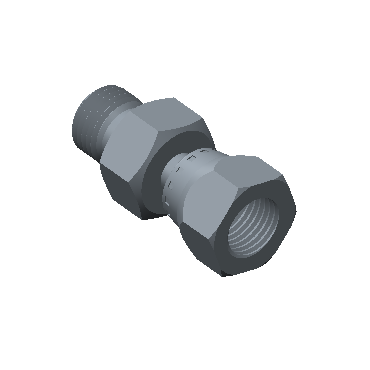

| Product | Body Material | Dimension H (Hex) (mm) | Dimension h (Hex) (mm) | Dimension L (mm) | Dimension L1 (mm) | Dimension L2 (mm) | T (UNF) | Tube O.D. (in) | Tube O.D. (mm) | Unified National Fine Thread (U) | |
| FSFOM-4T-04U-S316 | Stainless steel 316 | 14.20 | 14.20 | 33.30 | 24.60 | 9.10 | 7/16″-20 | 1/4 | 6 | 7/16″-20 | |
| FSFOM-5T-05U-S316 | Stainless steel 316 | 15.80 | 15.80 | 34.30 | 24.80 | 9.10 | 1/2″-20 | 5/16 | 8 | 1/2″-20 | |
| FSFOM-6T-06U-S316 | Stainless steel 316 | 17.40 | 17.40 | 36.30 | 26.80 | 9.90 | 9/16″-18 | 3/8 | 10 | 9/16″-18 | |
| FSFOM-8T-08U-S316 | Stainless steel 316 | 22.20 | 22.20 | 40.90 | 30.20 | 11.10 | 3/4″-16 | 1/2 | 12 | 3/4″-16 | |
| FSFOM10T-10U-S316 | Stainless steel 316 | 26.90 | 26.90 | 46.70 | 34.00 | 12.70 | 7/8″-14 | 5/8 | 16 | 7/8″-14 | |
| FSFOM12T-12U-S316 | Stainless steel 316 | 31.70 | 31.80 | 52.60 | 38.30 | 15.10 | 1 1/16″-12 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFOM16T-16U-S316 | Stainless steel 316 | 38.10 | 38.10 | 57.90 | 42.80 | 15.10 | 1 5/16″-12 | 1 | 25 | 1 5/16″-12 | |
| FSFOM20T-20U-S316 | Stainless steel 316 | 50.00 | 50.00 | 63.20 | 47.40 | 15.10 | 1 5/8″-12 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFOM-4T-04U-BRAS | Brass | 14.20 | 14.20 | 33.30 | 24.60 | 9.10 | 7/16″-20 | 1/4 | 6 | 7/16″-20 | |
| FSFOM-5T-05U-BRAS | Brass | 15.80 | 15.80 | 34.30 | 24.80 | 9.10 | 1/2″-20 | 5/16 | 8 | 1/2″-20 | |
| FSFOM-6T-06U-BRAS | Brass | 17.40 | 17.40 | 36.30 | 26.80 | 9.90 | 9/16″-18 | 3/8 | 10 | 9/16″-18 | |
| FSFOM-8T-08U-BRAS | Brass | 22.20 | 22.20 | 40.90 | 30.20 | 11.10 | 3/4″-16 | 1/2 | 12 | 3/4″-16 | |
| FSFOM10T-10U-BRAS | Brass | 26.90 | 26.90 | 46.70 | 34.00 | 12.70 | 7/8″-14 | 5/8 | 16 | 7/8″-14 | |
| FSFOM12T-12U-BRAS | Brass | 31.70 | 31.80 | 52.60 | 38.30 | 15.10 | 1 1/16″-12 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFOM16T-16U-BRAS | Brass | 38.10 | 38.10 | 57.90 | 42.80 | 15.10 | 1 5/16″-12 | 1 | 25 | 1 5/16″-12 | |
| FSFOM20T-20U-BRAS | Brass | 50.00 | 50.00 | 63.20 | 47.40 | 15.10 | 1 5/8″-12 | 1-1/4 | 32 | 1 5/8″-12 | |
| FSFOM-4T-04U-STEL | Carbon Steel | 14.20 | 14.20 | 33.30 | 24.60 | 9.10 | 7/16″-20 | 1/4 | 6 | 7/16″-20 | |
| FSFOM-5T-05U-STEL | Carbon Steel | 15.80 | 15.80 | 34.30 | 24.80 | 9.10 | 1/2″-20 | 5/16 | 8 | 1/2″-20 | |
| FSFOM-6T-06U-STEL | Carbon Steel | 17.40 | 17.40 | 36.30 | 26.80 | 9.90 | 9/16″-18 | 3/8 | 10 | 9/16″-18 | |
| FSFOM-8T-08U-STEL | Carbon Steel | 22.20 | 22.20 | 40.90 | 30.20 | 11.10 | 3/4″-16 | 1/2 | 12 | 3/4″-16 | |
| FSFOM10T-10U-STEL | Carbon Steel | 26.90 | 26.90 | 46.70 | 34.00 | 12.70 | 7/8″-14 | 5/8 | 16 | 7/8″-14 | |
| FSFOM12T-12U-STEL | Carbon Steel | 31.70 | 31.80 | 52.60 | 38.30 | 15.10 | 1 1/16″-12 | 3/4 | 18|20 | 1 1/16″-12 | |
| FSFOM16T-16U-STEL | Carbon Steel | 38.10 | 38.10 | 57.90 | 42.80 | 15.10 | 1 5/16″-12 | 1 | 25 | 1 5/16″-12 | |
| FSFOM20T-20U-STEL | Carbon Steel | 50.00 | 50.00 | 63.20 | 47.40 | 15.10 | 1 5/8″-12 | 1-1/4 | 32 | 1 5/8″-12 |
